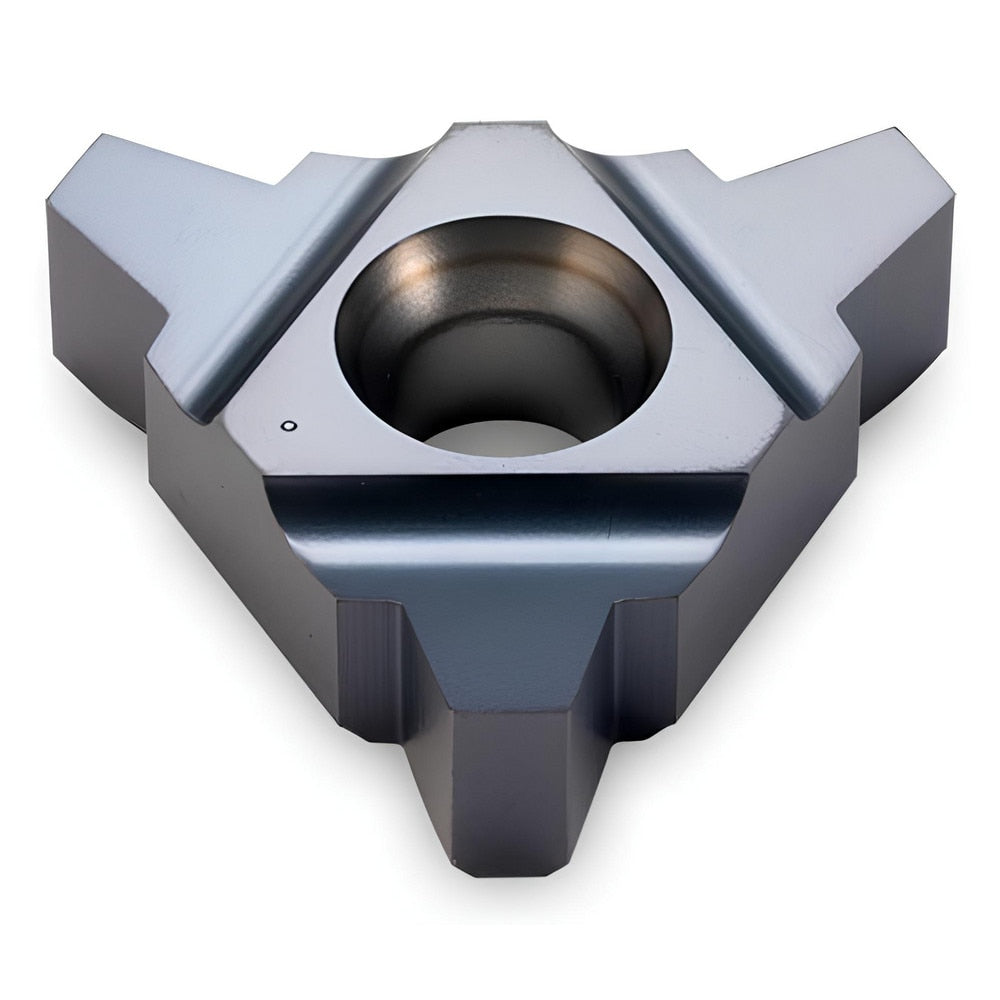

Brand: Ingersoll Cutting Tools / Part #: 5902494
Item #: 06583918
Brand: Ingersoll Cutting Tools
Model #: 5902494
Product Specifications
| Insert Style | 22UI |
| Insert Size Code | 22 |
| Insert Material | Carbide |
| Manufacturer Grade | TT9030 |
| Thread Type | Internal & External |
| Pitch (mm) | 6.00 |
| Thread Standard | Trapezoidal |
| Insert Hand | Neutral |
| Included Angle | 30.00 |
| Chipbreaker | None |
| Series | Trapeze DIN U-Type |
| Coating Process | PVD |
| Inscribed Circle (Inch) | 1/2 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Super-alloys & Titanium |
| Secondary Workpiece Material Code | S; H; N |
| Ansi Code | 22UIRL6TR |
| Iso Code | 22UIRL6TR |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.433 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.079 |
| Number of Teeth Per Side | 1 |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Thickness (Decimal Inch - 4 Decimals) | 0.1880 |
| Coating/Finish | TiAlN |
