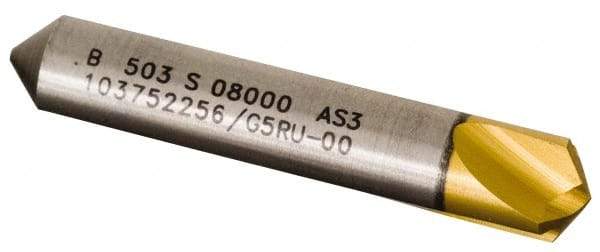

Kennametal - 8mm Diam, 132°, HTS DFR Carbide Pilot Drill Insert - Style B514, TiN Coated
Item #: 56495799
Brand: Kennametal
Model #: 1854378
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Series | HTS DFR |
| Material | Carbide |
| Insert Style | B514 |
| Diameter (mm) | 8.00 |
| Diameter (Decimal Inch) | 0.3150 |
| Manufacturer's Grade | KC7030 |
| Included Angle | 132 |
| Overall Length (mm) | 44.50 |
| Overall Length (Decimal Inch) | 1.7520 |
| Coating | TiN |
