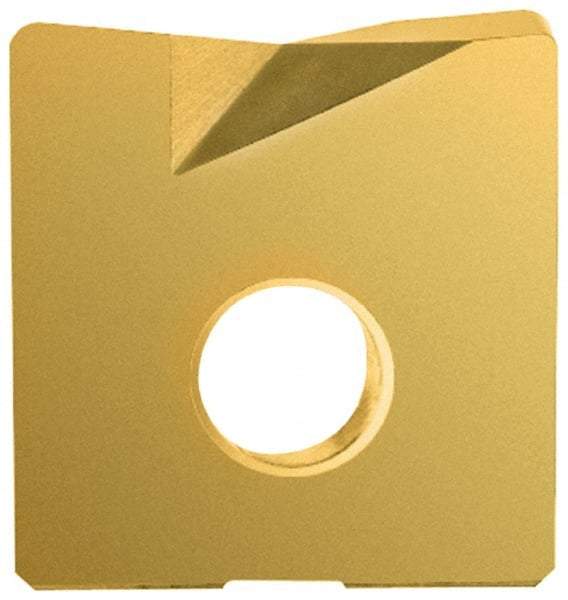

LMT - WPV1000 Grade LC610T Carbide Milling Insert - TiAlN/TiN Finish, 0.16" Thick, 1" Inscribed Circle, 1/16" Corner Radius
Item #: 56446305
Brand: LMT
Model #: 88766
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WPV |
| Insert Size | 1000 |
| Material | Carbide |
| Material Grade | C2/C3 |
| Manufacturer's Grade | LC610T |
| Coating | TiAlN/TiN |
| Length (Decimal Inch) | 0.9200 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Thickness (Decimal Inch) | 0.1600 |
| Corner Radius (Decimal Inch) | 0.0620 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Ball Nose Squared Tip |
