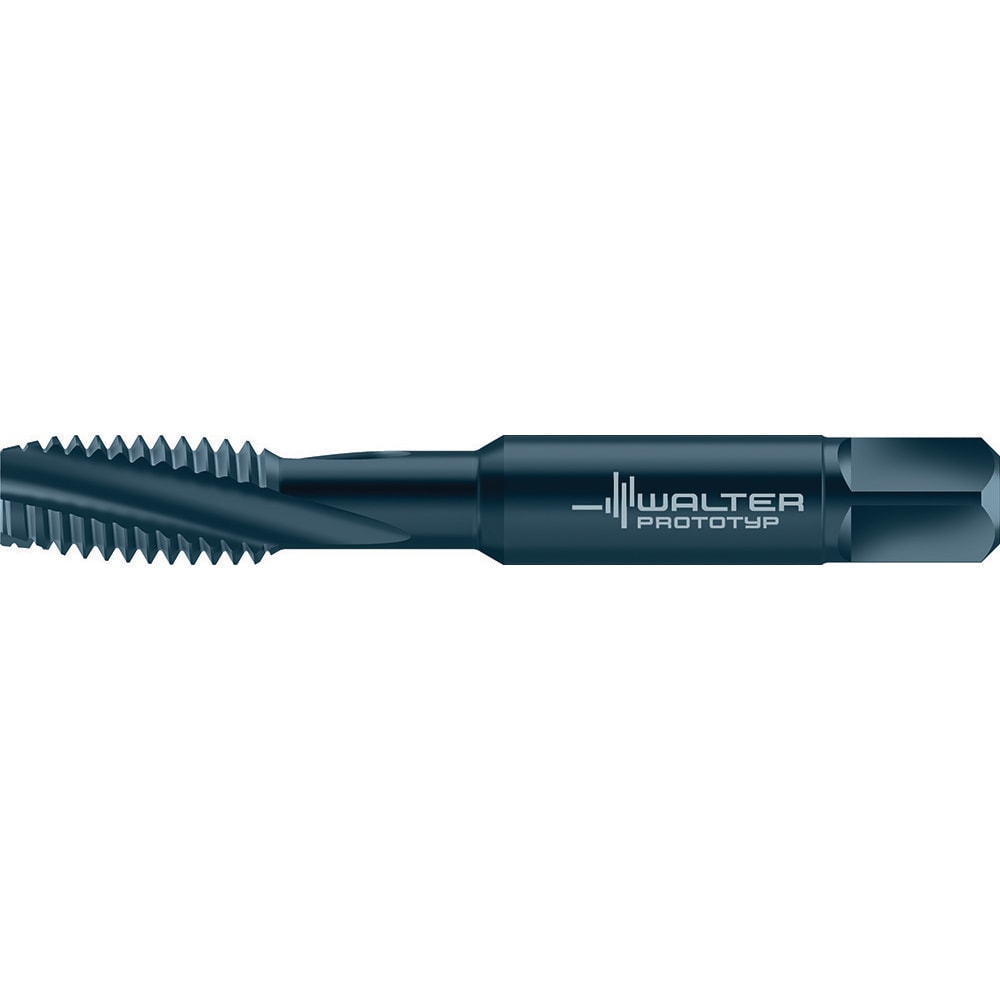

Spiral Flute Tap: M8 x 1.25, Metric, 3 Flute, Semi-Bottoming Chamfer, 6HX Class of Fit, High-Speed Steel-E, Steam Oxide Finish
Item #: 53436606
Brand: Walter-Prototyp
Model #: 8046430
Product Specifications
| Thread Size (mm) | M8 x 1.25 |
| Thread Standard | Metric |
| Chamfer | Semi-Bottoming |
| Material | High-Speed Steel-E |
| Thread Limit | H9 |
| Class Of Fit | 6HX |
| Coating/Finish | Steam Oxide |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Helix Angle | 15.00 |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.7480 |
| Thread Length (mm) | 19.00 |
| Overall Length (Decimal Inch) | 2.8496 |
| Overall Length (mm) | 72.3800 |
| Thread Pitch (mm) | 1.25 |
| Application | Threading |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Shank Diameter (mm) | 8.0700 |
| Tapping Depth (Decimal Inch) | 0.7480 |
| Tapping Depth (mm) | 19.00 |
| Square Length (mm) | 9.65 |
| Square Length (Decimal Inch) | 0.3799 |
| Square Size (Decimal Inch) | 0.2380 |
| Square Size (mm) | 6.04 |
| Flute Style | Spiral |
| Series | A20416S |
| UNSPSC Code | 23241600 |
