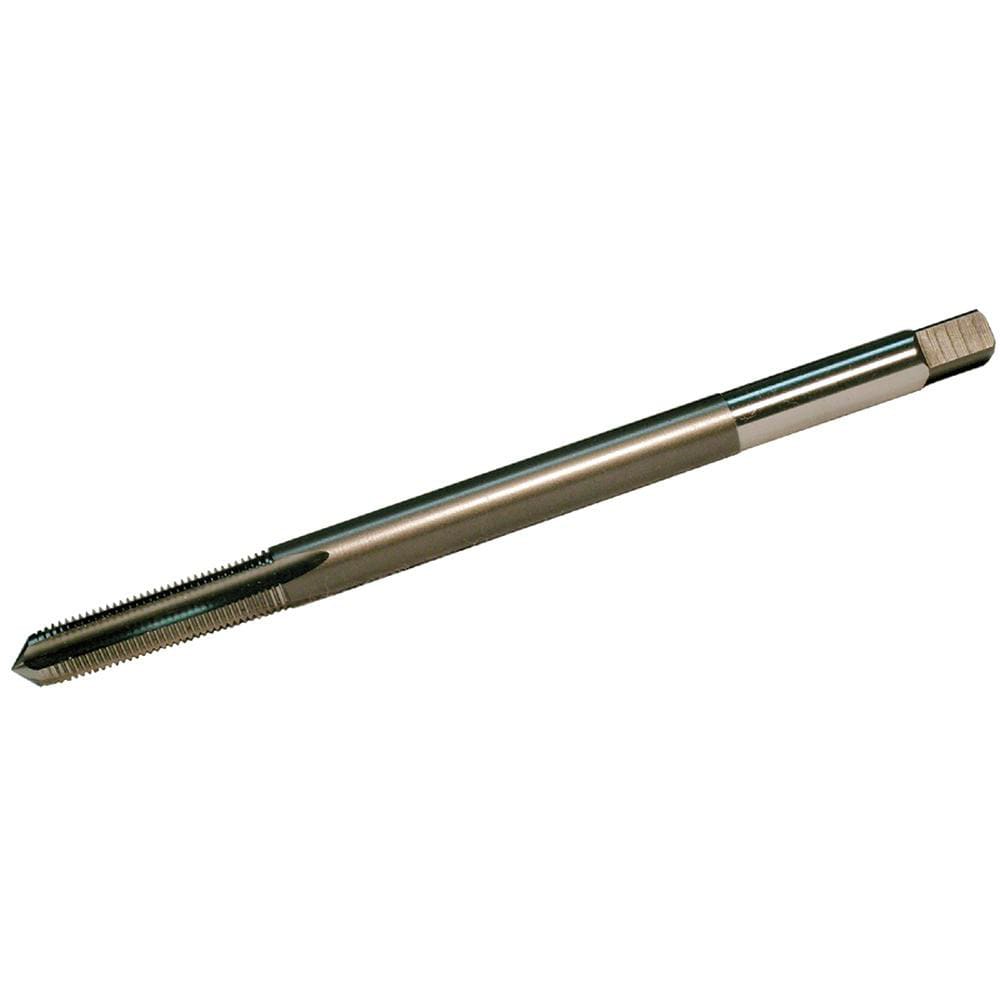

Brand: Widia / Part #: 2747063
Item #: 97842876
Brand: Widia
Model #: 2747063
Product Specifications
| Tap Type | Extension |
| Thread Size (Inch) | 1/4-28 |
| Thread Standard | UNC |
| Thread Limit | H3 |
| Thread Pitch (mm) | 0.91 |
| Thread Length (Decimal Inch) | 1.0000 |
| Thread Length (Inch) | 1 |
| Thread Depth (Decimal Inch) | 1.0000 |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Application | Steel |
| Shank Length (Inch) | 5 |
| Shank Length (Decimal Inch) | 5.0000 |
| Square Size (Decimal Inch) | 0.1910 |
| Reduced Shank | No |
| Series | 5303 |
| Helix Angle | 0.00 |
| Square Length (Inch) | 5/16 |
| Flute Direction | Right Hand |
| Neck Length (Decimal Inch) | 5.0000 |
| Number Of Flutes | 4 |
| Coating/Finish | Uncoated |
| Threads per Inch | 28 |
