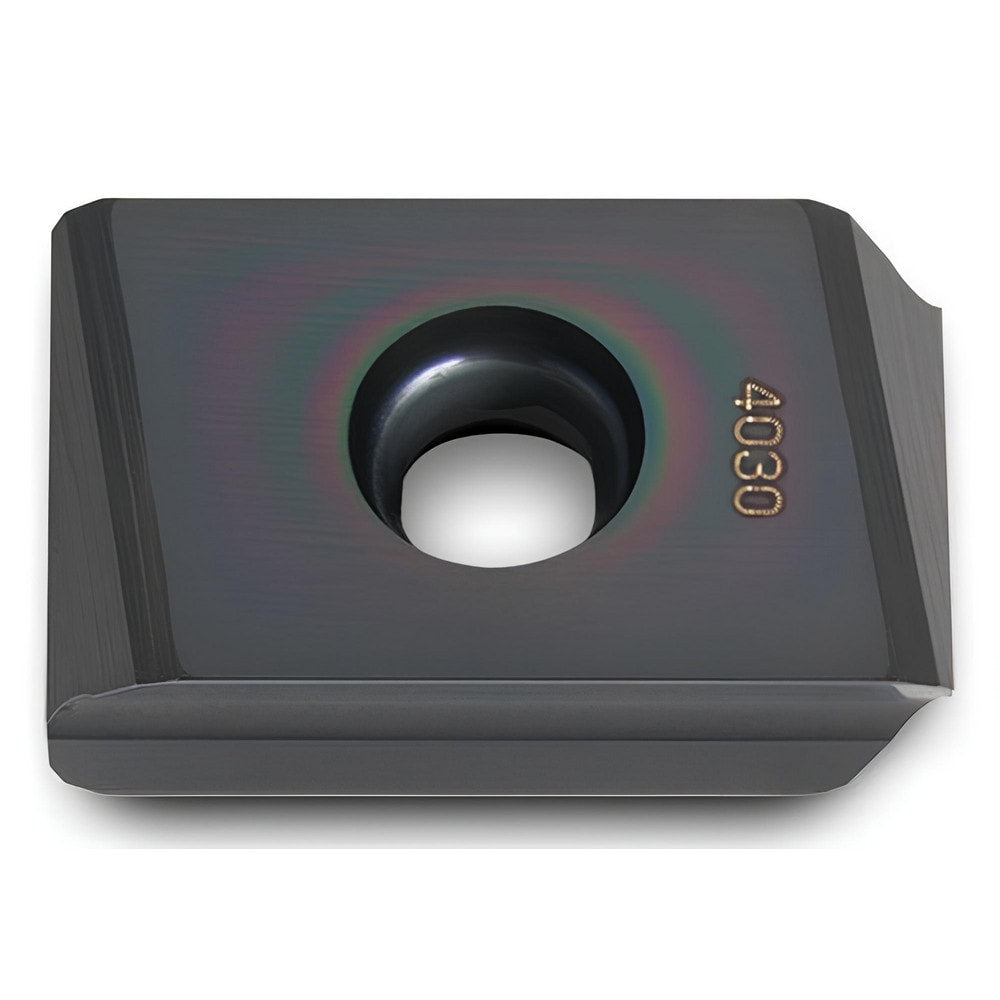

Brand: Ingersoll Cutting Tools / Part #: 2913779
Item #: 67329938
Brand: Ingersoll Cutting Tools
Model #: 2913779
Product Specifications
| Insert Style | LPE |
| Insert Size Code | 46 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2530 |
| Length (Inch) | 1-1/8 |
| Thickness (Inch) | 3/8 |
| Inscribed Circle (Inch) | 21/32 |
| Insert Hand | Right Hand |
| Series | LPE |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 1.1250 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | LPE546R001-S A |
| Rake Angle | 11.000 |
| Manufacturers Catalog Number | LPE546R001-S A IN2530 |
| Cutter Series Compatibility | 9M2L |
| Chip Breaker | S |
| Cutting Direction | Right Hand |
| Shape | Rectangle |
| Length of Cut (mm) | 28.5800 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.6570 |
| Multi-Use Tool | Yes |
