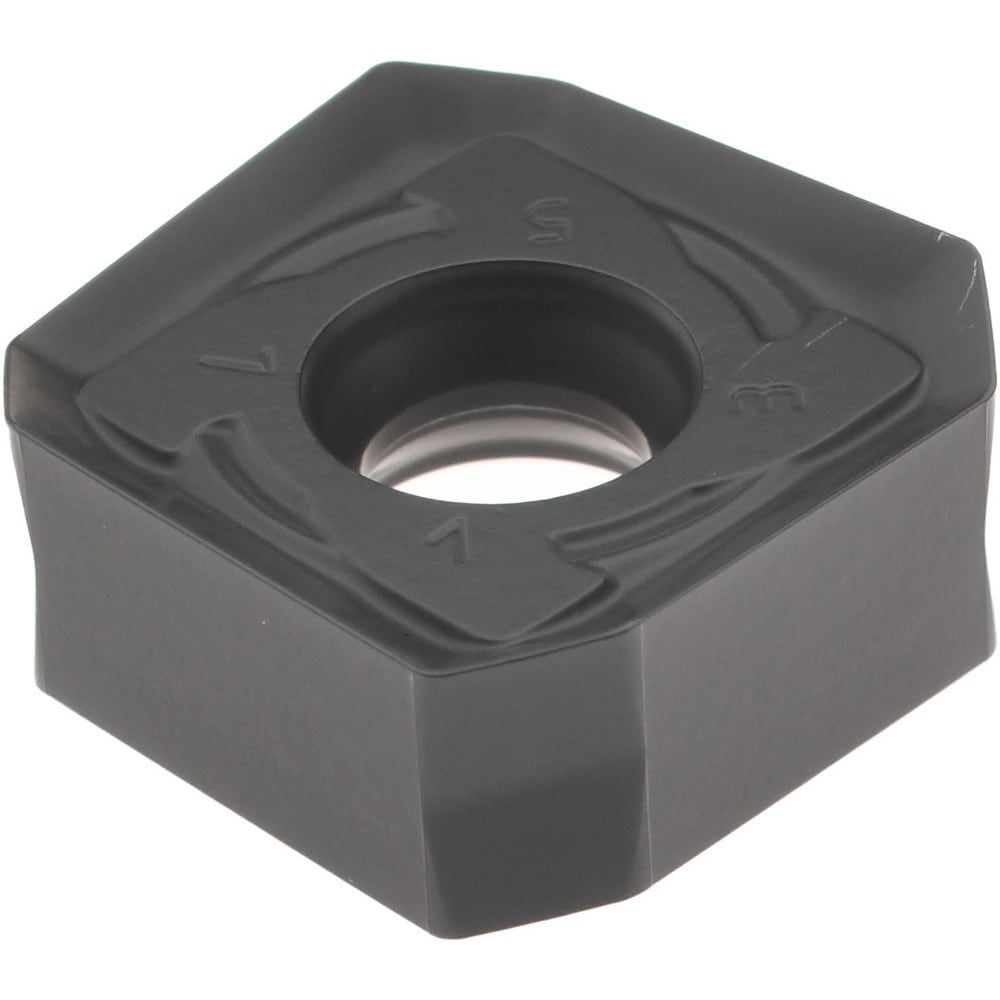

Milling Insert: SOKU1505AZERSCM ACP30M, Solid Carbide
Item #: 52973674
Brand: Accupro
Model #: 52973674
Product Specifications
| Insert Style | SOKU |
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | ACP30M |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2362 |
| Thickness (mm) | 6.0000 |
| Coating/Finish | CVD |
| Relief Angle | 6.000 |
| Insert Size Code | 15 |
| Inscribed Circle (Decimal Inch) | 0.6252 |
| Inscribed Circle (mm) | 15.88 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2559 |
| Maximum Depth of Cut (mm) | 6.50 |
| Series | CI |
| Rake | Positive |
| Iso Code | SOKU1505AZERSCM |
| Cutter Series Compatibility | SOKU |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Length (mm) | 15.88 |
| Width (Decimal Inch - 4 Decimals) | 0.6252 |
| Width (mm - 2 Decimals) | 15.88 |
| Length (Decimal Inch - 4 Decimals) | 0.6252 |
