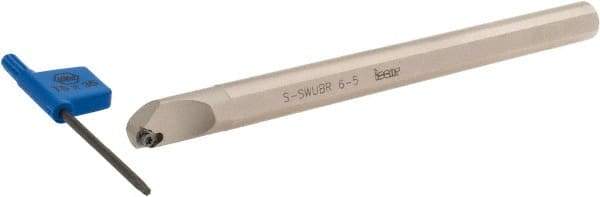

Iscar - 0.413" Min Bore Diam, 5" OAL, 3/8" Shank Diam, S-SWUB Indexable Boring Bar - WB.T 52.. Insert, Screw or Clamp Holding Method
Item #: 56025380
Brand: Iscar
Model #: 3601808
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SWUB |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 0.4130 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 5.0000 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | WB.T 52.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.2100 |
| Rake Angle | -12 |
| Complete Insert Compatibility | WBGT 520L; WBMT 52.004L; WBMT 520L |
| Toolholder Material | Steel |
