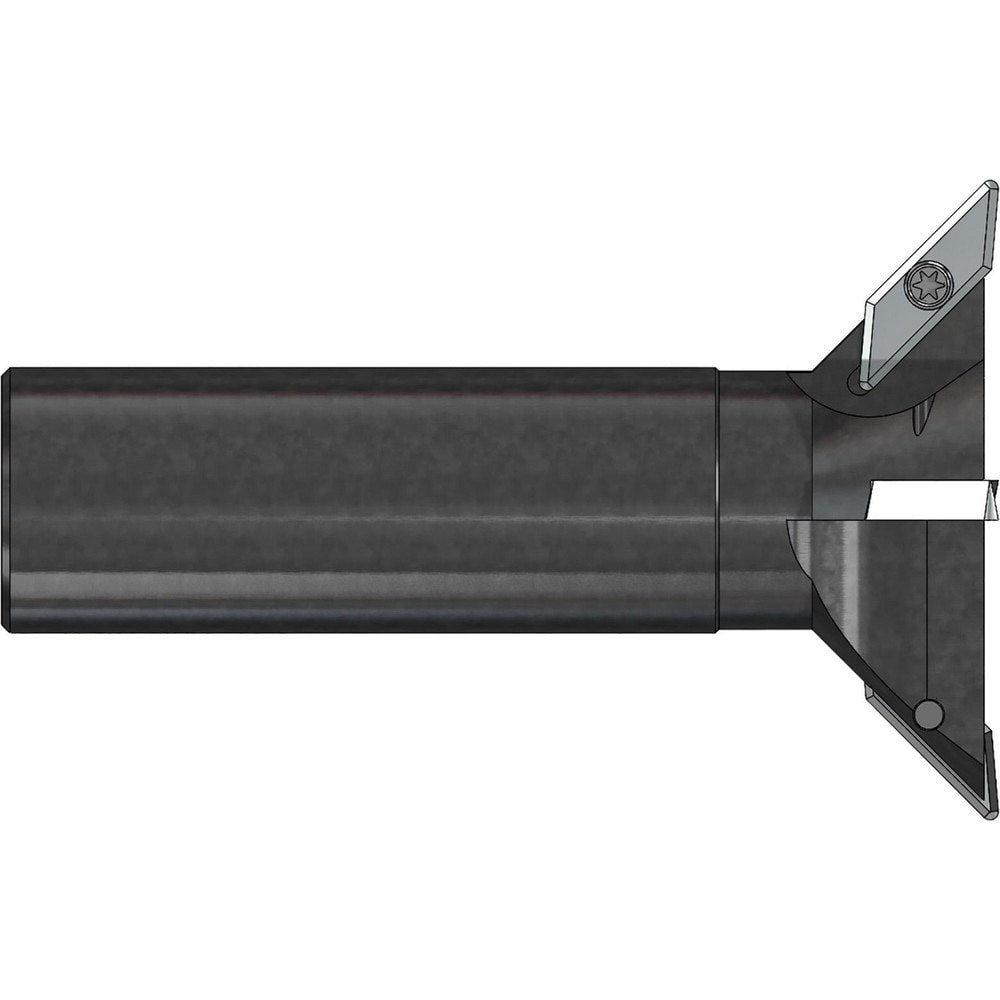

Indexable Dovetail Cutters; Included Angle: 90.00; Cutting Diameter: 3.0000 in; Maximum Depth Of Cut: 0.4900 in; Shank Type: Cylindrical; Shank Diameter: 1.0000; Compatible Insert Style: Di90L; Compatible Insert Size Code: Di90L; Through Coolant: No
Item #: 64438450
Brand: A.B. Tools
Model #: DXL90-3.0
Product Specifications
| Included Angle | 90.00 |
| Cutting Diameter | 3.0000 in |
| Maximum Depth Of Cut | 0.4900 in |
| Shank Type | Cylindrical |
| Shank Diameter | 1.0000 |
| Compatible Insert Style | Di90L |
| Compatible Insert Size Code | Di90L |
| Through Coolant | No |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 5 |
| Overall Length | 3.75 |
| Series | DEXI-DOVETAIL |
| Head Length | 0.4900 in |
| Rake Angle | 10.000 |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | S |
| UNSPSC Code | 23241632 |
| Included Angle | 90.00 |
| Cutting Diameter | 3.0000 in |
| Maximum Depth Of Cut | 0.4900 in |
| Shank Type | Cylindrical |
| Shank Diameter | 1.0000 |
| Compatible Insert Style | Di90L |
| Compatible Insert Size Code | Di90L |
| Through Coolant | No |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 5 |
| Overall Length | 3.75 |
| Series | DEXI-DOVETAIL |
| Head Length | 0.4900 in |
| Rake Angle | 10.000 |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | S |
| UNSPSC Code | 23241632 |
| MSC Part # | 64438450 |
| Mfr Part # | DXL90-3.0 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
