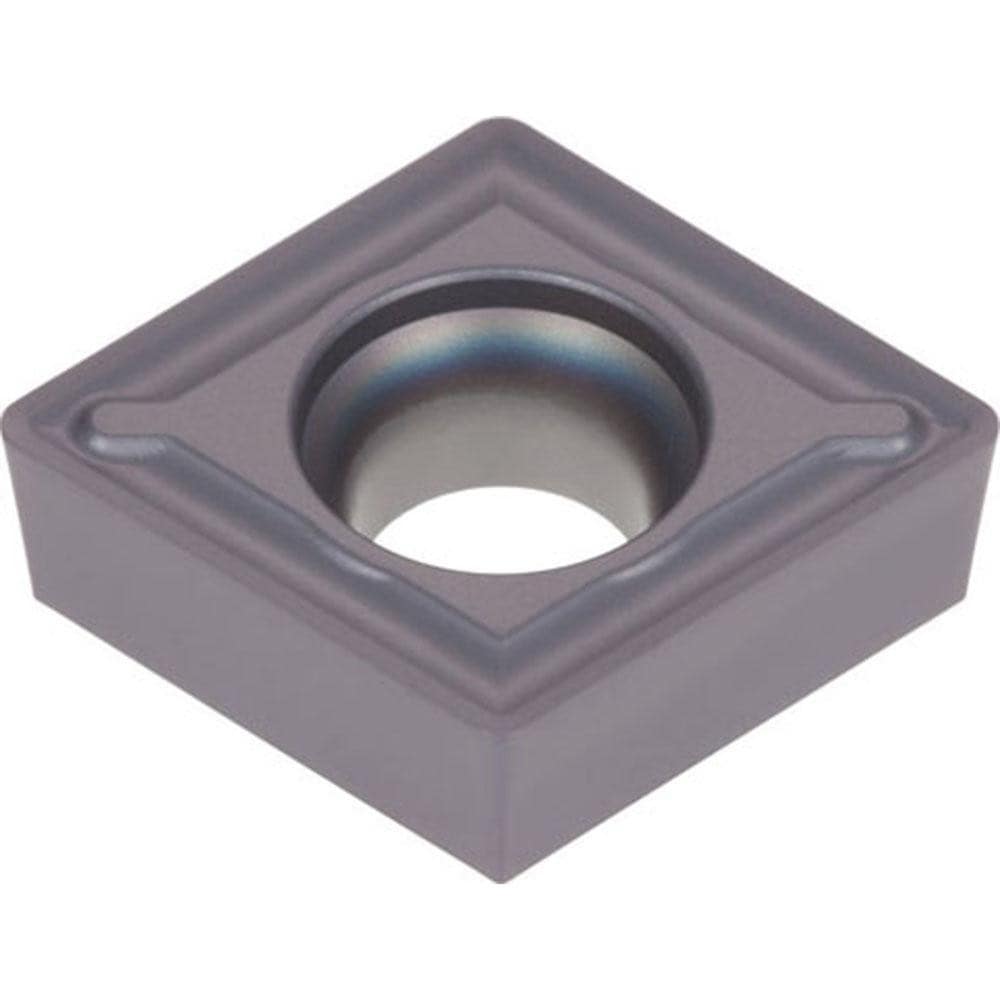

Turning Insert: CCMT32.52-24 NS9530, Cermet
Item #: 19848621
Brand: Tungaloy
Model #: 6998441
Product Specifications
| ANSI Insert Code | CCMT32.52 |
| ISO Insert Code | CCMT09T308 |
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80 |
| Manufacturer Grade | NS9530 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CCMT-24 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Cermet |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3820 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6998441 |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | 24 |
| Rake Angle | 6 |
| Cutting Edge Style | Honed |
| Industry Standard Number | CCMT 32.52-24 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 32.52 |
| ISO Size Code | 09T308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.52 |
