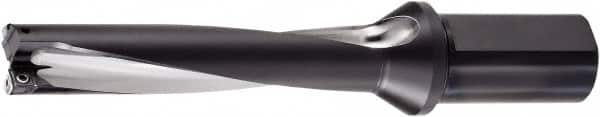

4″ Max Drill Depth, 4xD, 1″ Diam, Indexable Insert Drill Drill Style P4D, Takes 2 Inserts, 1-1/4″ Shank Diam, Weldon Flat Shank
Item #: 55897227
Brand: OSG
Model #: 52504002
Product Specifications
| Drill Style | P4D |
| Drill Diameter (Decimal Inch) | 1.0000 |
| Drill Diameter (Inch) | 1 |
| Maximum Drill Depth (Inch) | 4 |
| Maximum Drill Depth (Decimal Inch) | 4.0000 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 1.0000 to 1.3000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 4xD |
| Series | 52504 |
| Flute Length (Decimal Inch) | 4.5910 |
| Body Length (Decimal Inch) | 7.2680 |
| Shank Length (Decimal Inch) | 2.3620 |
| Overall Length/Projection (Decimal Inch) | 7.2680 |
| Insert Compatibility | XCMT08? |
| Coolant Through | Yes |
