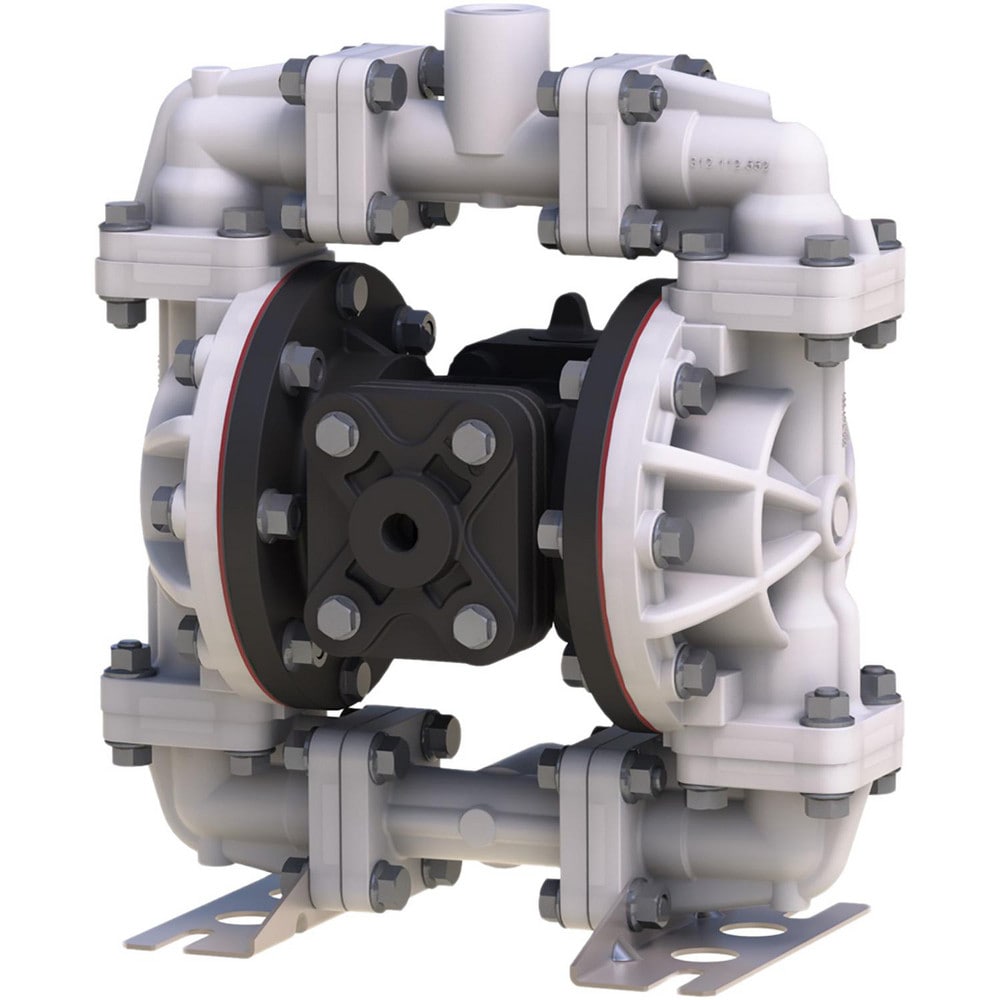

Air-Operated Diaphragm Pumps; Maximum Flow Rate (Gpm
Item #: 02367274
Brand: SandPIPER
Model #: S05B2P1TPNI000.
Product Specifications
| Maximum Flow Rate (Gpm - 2 Decimals) | 14.00 |
| Maximum Working Pressure | 100.000 |
| Thread Type | NPT |
| Inlet Size | 0.5 in |
| Cubic Feet Per Minute | 16 SCFM |
| Diaphragm Material | Santoprene |
| Ball Material | Santoprene |
| Check Seat Material | PTFE |
| Height (Inch) | 10.62 |
| Width (Inch) | 11.76 |
| Length (Inch) | 7.13 |
| Port Type | NPT |
| Body Material | Polypropylene |
| Maximum Temperature (F) ( - 0 Decimals) | 180.000 |
| Maximum Solid Size (Inch) | 1/2 |
| Air Inlet Size (Inch) | 1/4 |
| Maximum Cubic Feet Per Minute (CFM) | 16.00 |
| UNSPSC Code | 40151548 |
