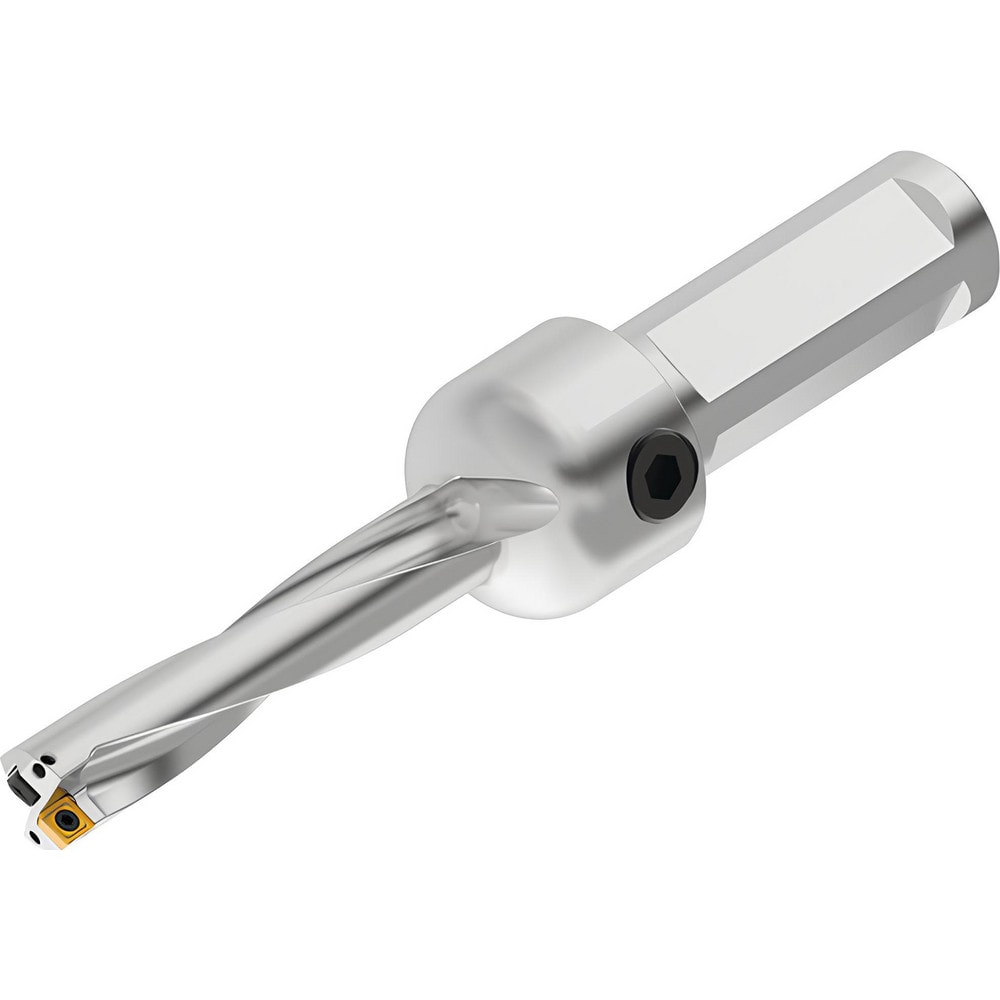

Indexable Insert Drill: DFPR0656R5SSF075, 17.16 mm Max Dia, 83.31 mm Max Depth, 5xD, 19.05 mm Shank Dia
Item #: 04945200
Brand: Kennametal
Model #: 7031321
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 17.16 |
| Maximum Drill Diameter (Decimal Inch) | 0.6757 |
| Maximum Drill Depth (Decimal Inch) | 3.2790 |
| Maximum Drill Depth (mm) | 83.31 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (mm) | 19.05 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 060304 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 6.3420 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 3.2790 |
| Flute Length (mm) | 87.31 |
| Body Length | 161.11 |
| Body Length (Decimal Inch) | 4.3420 |
| Shank Length (Decimal Inch) | 2.0000 |
| Shank Length (mm) | 50.80 |
| Coolant Hole Thread Size | "1/8-27 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2440x0.1020; 0.2560x0.1020 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR060304__I; DFPR060304__O |
| Collar Diameter (Decimal Inch) | 0.6323 |
| Collar Diameter (mm) | 16.06 |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
| Insert Lock Screw | M2.2-0.45x5.2T7 |
| Coolant Through | Yes |
