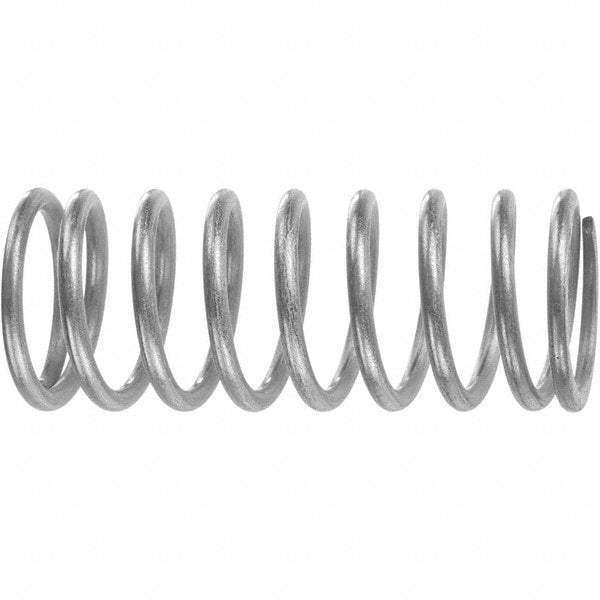

Precision Compression Spring: 0.5880" OD, 5-1/4" Free Length
Item #: 95135992
Brand: Associated Spring Raymond
Model #: C0588-055-5250S
Product Specifications
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.5880 |
| Free Length (Inch) | 5-1/4 |
| Spring Rate | 3.2 |
| End Type | Ground; Square |
| Maximum Work Load (Lb.) | 9.70 |
| Material | Stainless Steel |
| Finish | Plain |
| Wire Size (Decimal Inch) | 0.0550 |
| Hole Diameter (Decimal Inch) | 0.4800 |
| Spring Type | Precision |
| Solid Height (Decimal Inch) | 1.4600 |
| Free Length (Decimal Inch) | 5.2500 |
| Color | Silver |
| Standards | AMS 5688; ASTM A313 |
| UNSPSC Code | 31161904 |
| Country of Origin | China |
