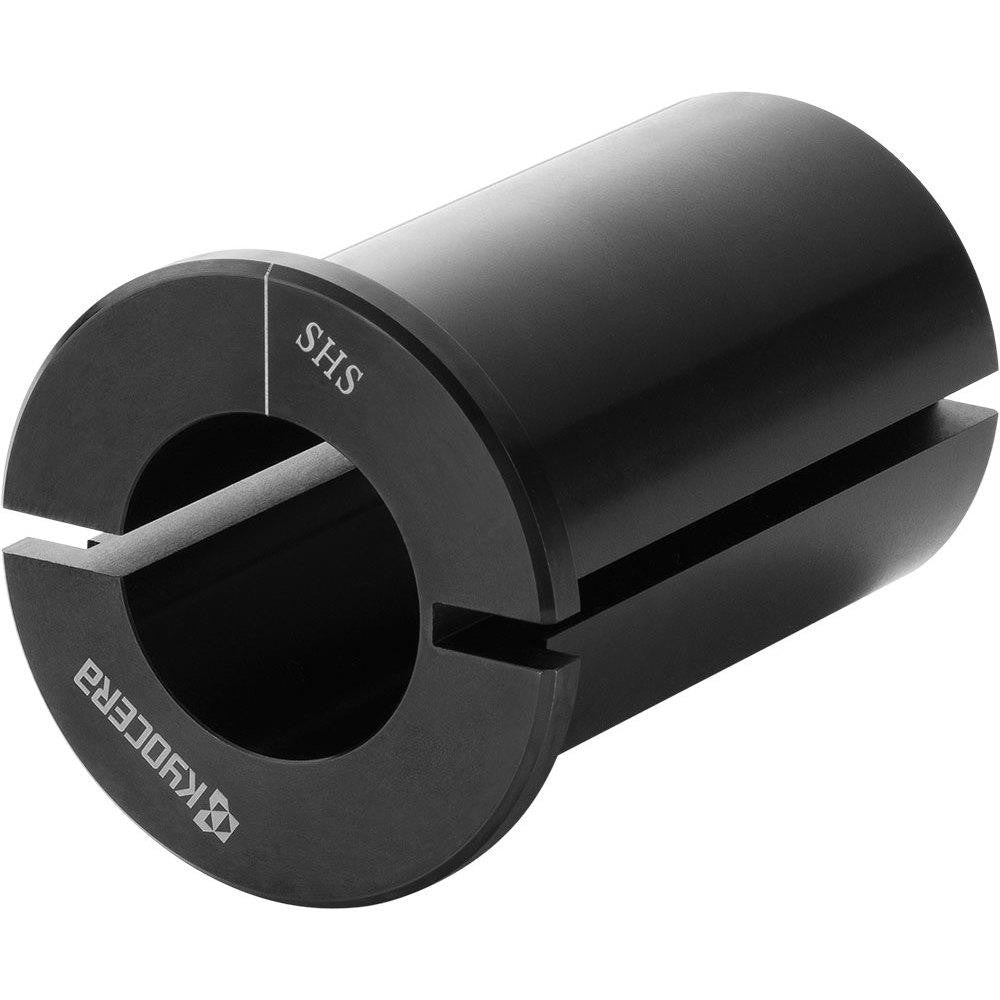

Boring Bar Sleeves; Bore Diameter (Decimal Inch): 0; Bore Depth (Decimal Inch): 0; Overall Length (mm): 70.0000; Overall Length (Decimal Inch): 2.7559; Material: Steel
Item #: 63312656
Brand: Kyocera
Model #: THC15308
Product Specifications
| Bore Diameter (Decimal Inch) | 0 |
| Bore Depth (Decimal Inch) | 0 |
| Overall Length (mm) | 70.0000 |
| Overall Length (Decimal Inch) | 2.7559 |
| Material | Steel |
| Shank Type | Cylindrical |
| Shank Height (Decimal Inch) | 1.5354 |
| Shank Height (mm) | 39.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 40.0000 |
| Head Diameter (Decimal Inch) | 1.9685 |
| Head Diameter (mm) | 50.0000 |
| Body Length | 70.000 |
| Body Length (Decimal Inch) | 2.7559 |
| UNSPSC Code | 23242106 |
| Bore Diameter (Decimal Inch) | 0 |
| Bore Depth (Decimal Inch) | 0 |
| Overall Length (mm) | 70.0000 |
| Overall Length (Decimal Inch) | 2.7559 |
| Material | Steel |
| Shank Type | Cylindrical |
| Shank Height (Decimal Inch) | 1.5354 |
| Shank Height (mm) | 39.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 40.0000 |
| Head Diameter (Decimal Inch) | 1.9685 |
| Head Diameter (mm) | 50.0000 |
| Body Length | 70.000 |
| Body Length (Decimal Inch) | 2.7559 |
| UNSPSC Code | 23242106 |
| MSC Part # | 63312656 |
| Mfr Part # | THC15308 |
| Country of Origin Country of Origin is subject to change | Japan |
