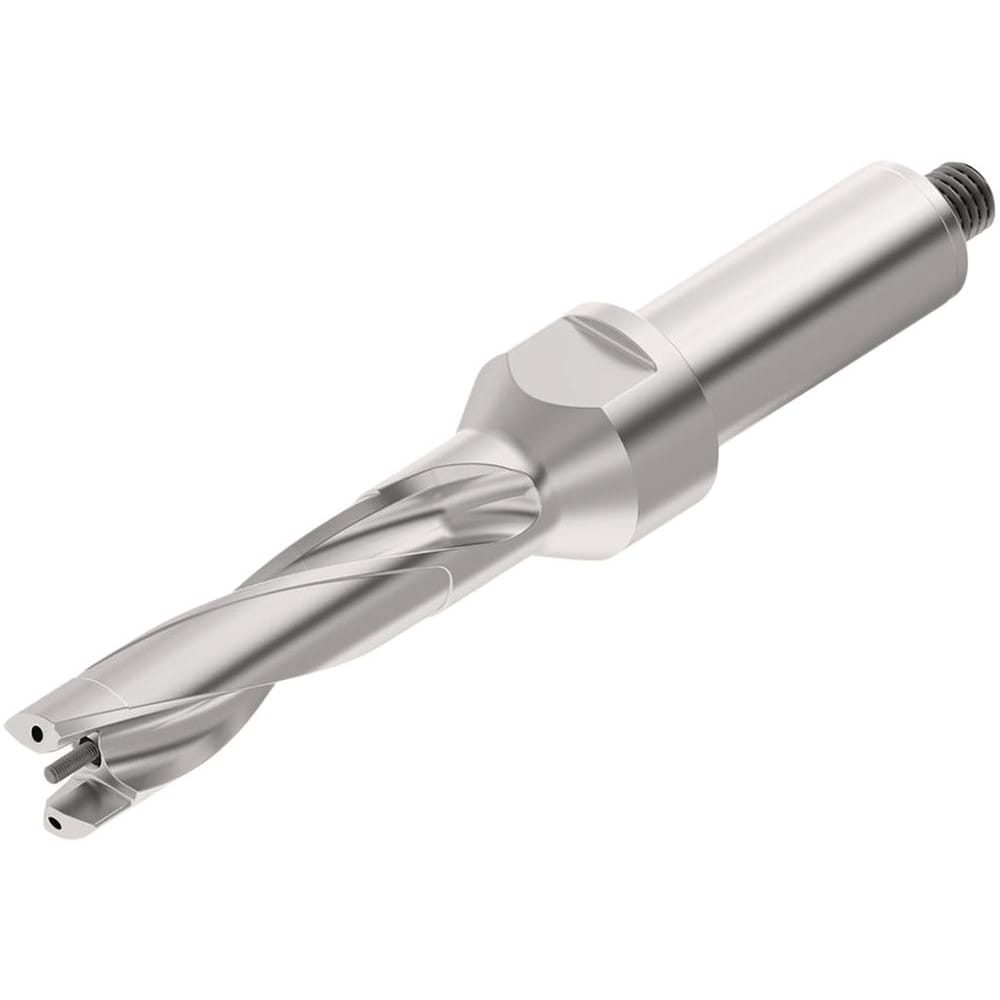

Replaceable-Tip Drills; Minimum Drill Diameter (mm): 30.00; Maximum Drill Diameter (mm): 32.00; Drill Depth by Diameter Ratio: 2.5xD; Maximum Drill Depth (mm): 113.80
Item #: 42013797
Brand: Kennametal
Model #: 7138112
Product Specifications
| Minimum Drill Diameter (mm) | 30.00 |
| Maximum Drill Diameter (mm) | 32.00 |
| Drill Depth by Diameter Ratio | 2.5xD |
| Maximum Drill Depth (mm) | 113.80 |
| Shank Type | Flange; Threaded; Straight |
| Insert Seat Size | 8 |
| Shank Diameter (mm) | 32.0000 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 100.00 - 125.00 |
| Compatible Insert Style | KSEM |
| Overall Length (mm) | 222.0000 |
| Series | KSEM ST-Line |
| Flute Length (mm) | 113.80 |
| Flute Length (Decimal Inch) | 4.4803 |
| Body Length (Decimal Inch) | 5.9055 |
| Body Length | 150.000 |
| Shank Length (mm) | 60.000 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Coating Classification | Uncoated |
| Number Of Flutes | 2 |
| UNSPSC Code | 23153308 |
| Coating/Finish | Uncoated |
