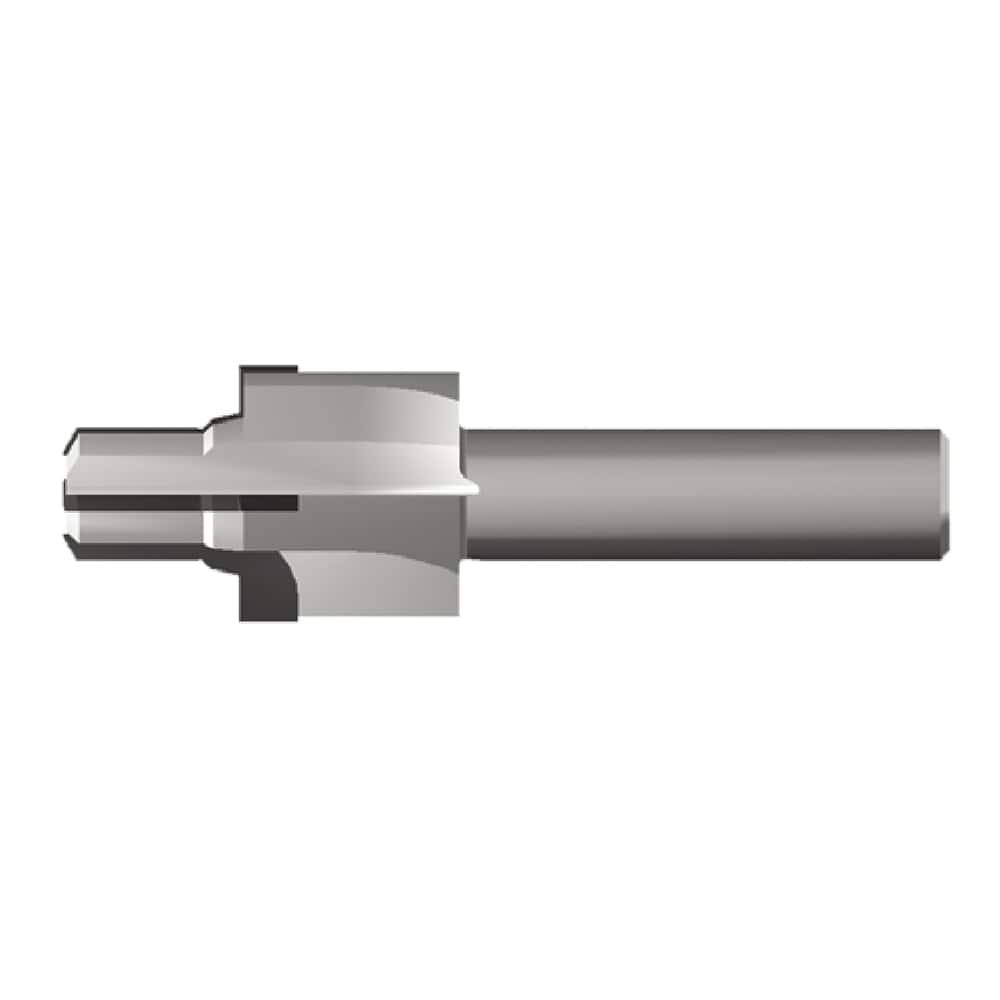

Porting Tool: 2.28″ Spotface Dia, 1-1/4″ Tube OD, Reamer, Tube Dash #20 1.542″ Min Pilot Dia, 0.777″ Pilot Length, 4 Flutes, MS 16142, SAE J1926 & SAE J514
Item #: 55265052
Brand: Scientific Cutting Tools
Model #: MS16142-20RA
Product Specifications
| Spotface Diameter (Decimal Inch) | 2.2800 |
| Tube Outside Diameter Compatibility (Inch) | 1-1/4 |
| Pilot Type | Reamer |
| Tube Dash Number | 20 |
| Minimum Pilot Diameter (Decimal Inch) | 1.5420 |
| Pilot Length | 0.7770 |
| Overall Length (Decimal Inch) | 4.3500 |
| Number Of Flutes | 4 |
| Standards | SAE J1926; MS 16142; SAE J514 |
| Identification Groove | No |
| Seal Angle | 15 |
| Thread Type | UN |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 1 |
| Shank Length (Decimal Inch) | 2.2500 |
| Maximum Pilot Diameter (Decimal Inch) | 1.7155 |
| Head Length (Decimal Inch) | 2.1000 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | AlTiN+ |
