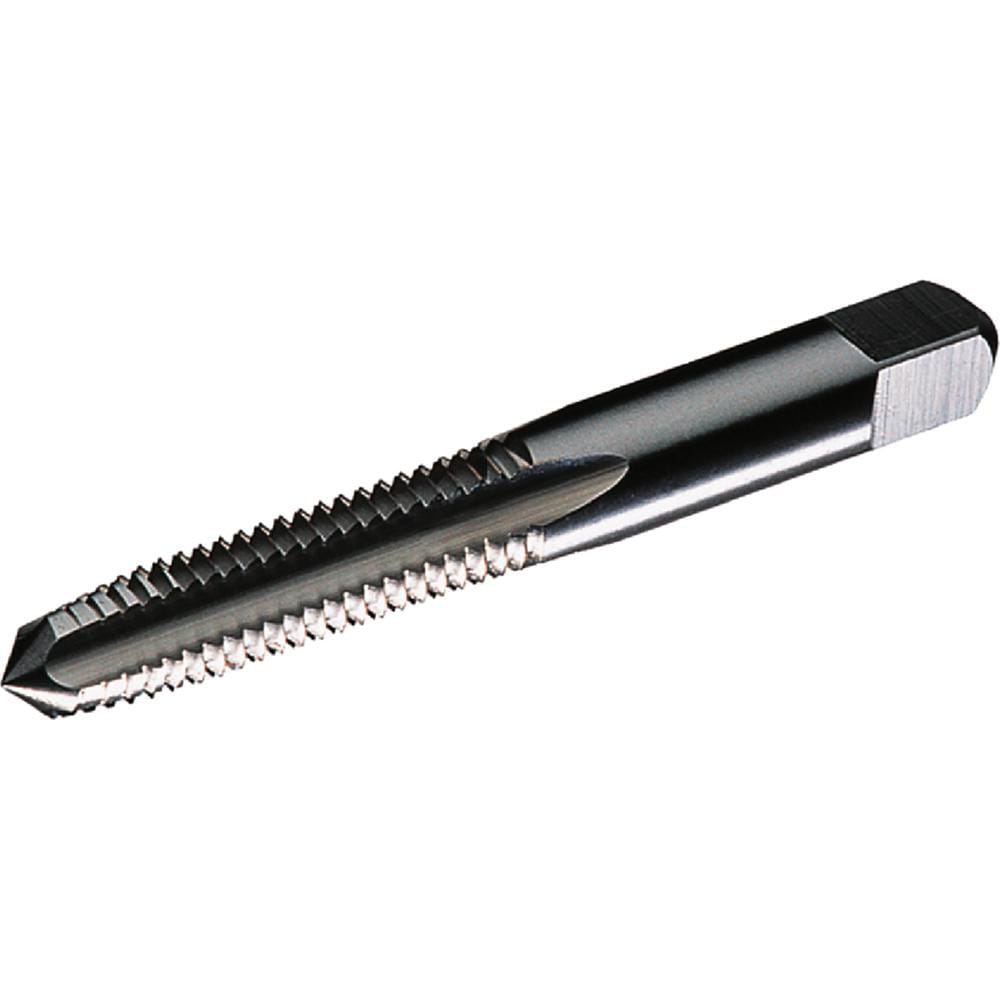

Brand: Widia / Part #: 2749084
Item #: 99827990
Brand: Widia
Model #: 2749084
Product Specifications
| Tap Type | Machine |
| Thread Size (mm) | M30x3.5 |
| Thread Limit | D9 |
| Class Of Fit | 6H |
| Number Of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 7 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | Metric |
| Overall Length (mm) | 138.1800 |
| Thread Pitch (mm) | 3.50 |
| Thread Length (mm) | 65.10 |
| Thread Depth (mm) | 65.10 |
| Application | Metal |
| Shank Diameter (mm) | 25.9300 |
| Series | 5353 |
| Shank Length (mm) | 0.000 |
| Shank Length (Decimal Inch) | 2.8772 |
