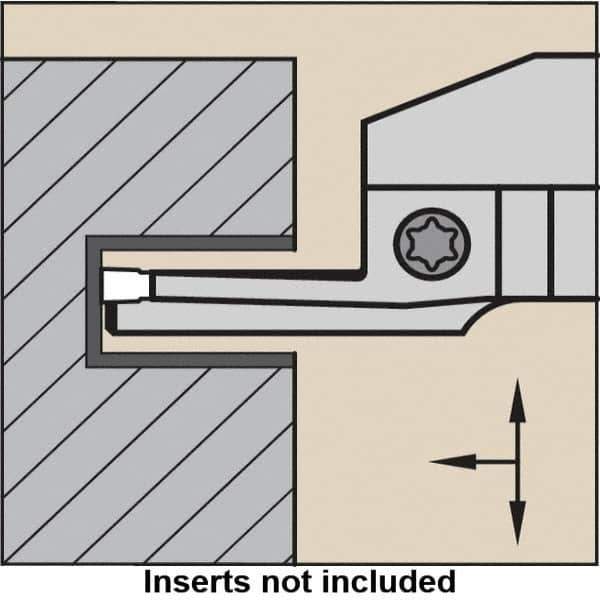

Kennametal - 3mm Groove Width, 14mm Max Depth of Cut, Left Hand Cut, A4M-B Indexable Grooving Blade - 3S Seat Size, A4G0300M3SP04B Insert Style, Series A4
Item #: 55155691
Brand: Kennametal
Model #: 3867469
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 3.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 14.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Blade Style | A4M-B |
| Series | A4 |
| Minimum Workpiece Diameter (mm) | 20.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 0.7874 |
| Maximum Workpiece Diameter (mm) | 25.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 0.9843 |
| Blade Height (mm) | 34.30 |
| Blade Height (Decimal Inch) | 1.3504 |
| Insert Style | A4G0300M3SP04B |
| Insert Seat Size | 3S |
| Cartridge Size | 50 |
| Complete Insert Compatibility | A4G0300M3SP04B |
