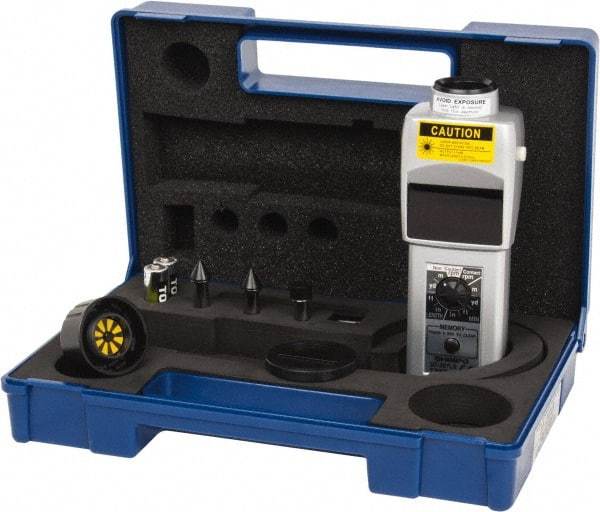

SHIMPO - Accurate up to 0.006 +/- 1% Digit (6 RPM Max) (25,000 to 99,999 RPM), 1 RPM Resolution, Contact and Noncontact Tachometer - 6.5945 Inch Long x 2.3622 Inch Wide x 1.811 Inch Meter Thick, 6 to 99,999 RPM Measurement
Item #: 55151286
Brand: SHIMPO
Model #: DT-207LR
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Contact/Non-Contact |
| Minimum Measurement (RPM) | 6.00 |
| Maximum Measurement (RPM) | 99999.00 |
| Meter Length (mm) | 167.50 |
| Meter Length (Decimal Inch) | 6.5945 |
| Meter Width (mm) | 60.00 |
| Meter Width (Decimal Inch) | 2.3622 |
| Meter Thickness (mm) | 46.00 |
| Meter Thickness (Decimal Inch) | 1.8110 |
| Accuracy (RPM) | 1 (6 to 8300); 2 (8300 to 25000) |
| Accuracy (%) | 0.006 ±1 Digit (6 RPM Max) (25000 to 99999 RPM) |
| Maximum Resolution (RPM) | 1.0000 |
| Sensor Type | Laser |
| Wheel Circumference (Inch) | 6 |
| Maximum Target Distance (Meters) | 6.00 |
| Display Type | LED |
| Number of Digits in Display | 5 |
| Battery Type | AA |
| Includes | (2) Cone Tips; 3.5" Extension Shaft; Carrying Case; DT-ADP-200LR Adapter; Funnel Tip; Instruction Manual; NIST Traceable Certificate; Reflective Tape; Warranty Card |
