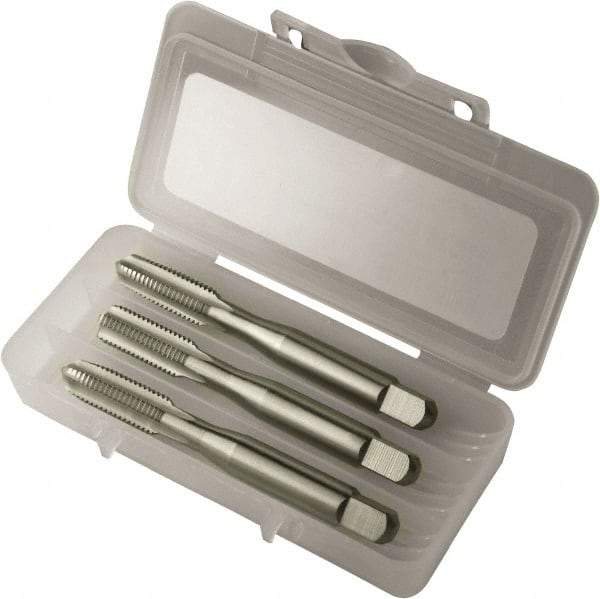

Vermont Tap & Die - 1/2-20 UNF, 4 Flute, Bottoming, Plug & Taper, Bright Finish, High Speed Steel Tap Set - Right Hand Cut, 3-3/8" OAL, 1-21/32" Thread Length, 2/3B Class of Fit, Series 3105
Item #: 55003107
Brand: Vermont Tap & Die
Model #: 342639
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers have 1 to 2 threads. Plug chamfers have 3 to 5 threads. Taper chamfers have 7 to 10 threads and are typically used as a starter tap. They all can be used for threading blind holes.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Thread Size | 1/2-20 |
| Number of Flutes | 4 |
| Chamfer | Bottoming; Plug; Taper |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Class of Fit | 2/3B |
| Thread Limit | H3 |
| Thread Length (Decimal Inch) | 0.9400 |
| Thread Length (Inch) | 1-21/32 |
| Overall Length (Decimal Inch) | 3.3750 |
| Overall Length (Inch) | 3-3/8 |
| Overall Length (mm) | 85.73 |
| Thread Standard | UNF |
| Series/List | 3105 |
| Number of Pieces | 3 |
