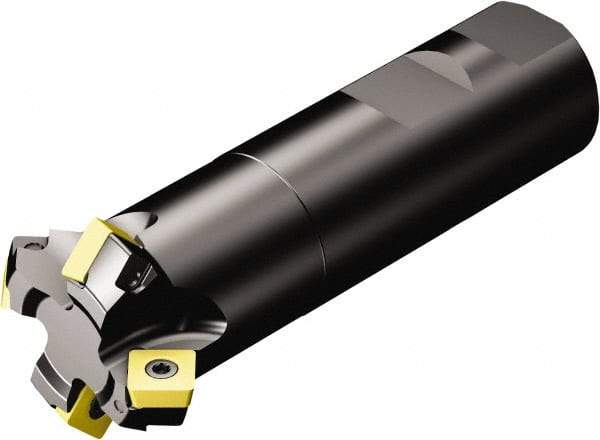

Sandvik Coromant - 1.02" Cut Diam, 1" Arbor Hole, 6.81mm Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 4 Inserts, 495-09T3M-XL Insert, Right Hand Cut, 4 Flutes, Through Coolant, Series CoroMill 495
Item #: 54952403
Brand: Sandvik Coromant
Model #: 6536286
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0200 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 30 |
| Overall Height (Decimal Inch) | 3.7506 |
| Insert Compatibility | 495-09T3M-XL |
| Series | CoroMill 495 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 6.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.2681 |
| Number of Cutter Inserts | 4 |
| Cutter Style | A495..Mxx |
| Maximum Body Diameter (Decimal Inch) | 0.7538 |
| Maximum RPM | 8000 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 495-09T3M-XL |
| Toolholder Material | Steel |
| Complete Insert Compatibility | 495-09T3M-XL |
| Insert Holding Method | Screw |
| Head Length (mm) | 37.31 |
| Head Length (Decimal Inch) | 1.4690 |
| Overall Length (mm) | 95.27 |
| Overall Length (Decimal Inch) | 3.7510 |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (Decimal Inch) | 1.020 |
| Maximum RPM | 8000 |
| Maximum Cutting Diameter (mm) | 37.31 |
| Maximum Cutting Diameter (Decimal Inch) | 1.469 |
| Included Angle | 30 |
| Minimum Cutting Diameter (mm) | 25.91 |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Shank Length (mm) | 57.95 |
| Shank Length (Decimal Inch) | 2.2817 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.000 |
| Weldon Flat | Yes |
| Toolholder Style | A495..Mxx |
