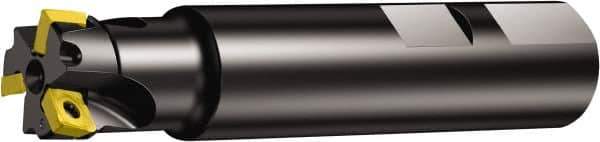

Sandvik Coromant - 1-1/2" Cut Diam, 5.5mm Max Depth of Cut, 1-1/4" Shank Diam, 4" OAL, Indexable Square Shoulder End Mill - 490R-08T308M-PL Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series CoroMill 490
Item #: 54951884
Brand: Sandvik Coromant
Model #: 5723534
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Inch) | 4 |
| Overall Length/Projection (Decimal Inch) | 4.0000 |
| Lead Angle | 90 |
| Series | CoroMill 490 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | A490-038M32-08M |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 1.7190 |
| Weldon Flat | Yes |
| Insert Compatibility | 490R-08T308M-PL |
| Shank Length (Decimal Inch) | 2.2810 |
| Maximum RPM | 30200 |
| Toolholder Material | Steel |
