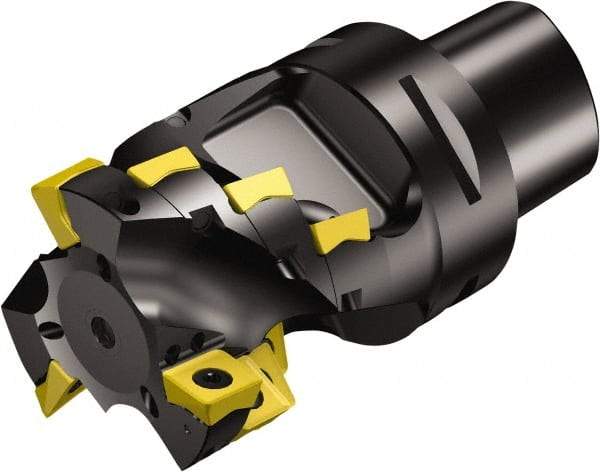

Sandvik Coromant - 2 Inserts, 1-1/2" Cut Diam, 2.4803" Arbor Diam, 1.811" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 3.2677" High, 690-100508M-E-SL & 690-100510M-P-SL Insert Compatibility, Through Coolant, Series CoroMill 690
Item #: 54949649
Brand: Sandvik Coromant
Model #: 5723628
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 3.2677 |
| Insert Compatibility | 690-100508M-E-SL; 690-100510M-P-SL |
| Series | CoroMill 690 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 1.8110 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | A690 |
| Maximum RPM | 5000 |
| Cutting Edge Length (Decimal Inch) | 1.8110 |
| ISO Number | A690038C61046H |
| Complete Insert Compatibility | 690-100508M-E-SL; 690-100510M-P-SL |
| Toolholder Material | Steel |
