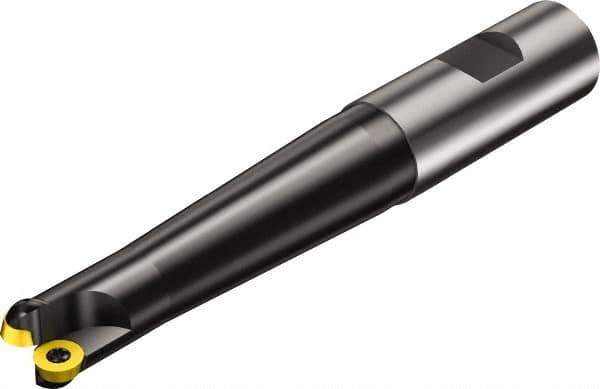

Sandvik Coromant - 2 Inserts, 5/8" Cutter Diam, 0.1772" Max Depth of Cut, Indexable High-Feed Face Mill - 5.2811" High, RA300..Mxx Toolholder, R300-0932.. Inserts, Series CoroMill 300
Item #: 54949219
Brand: Sandvik Coromant
Model #: 5739759
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Maximum Depth of Cut (Decimal Inch) | 0.1772 |
| Shank Diameter (Decimal Inch) | 25.4000 |
| Overall Height (Decimal Inch) | 5.2811 |
| Series | CoroMill 300 |
| Cutter Style | RA300..Mxx |
| Number of Cutter Inserts | 2 |
| Insert Compatibility | R300-0932.. |
| Cutting Direction | Right Hand |
| Maximum RPM | 14500 |
| Maximum Body Diameter (Decimal Inch) | 0.7795 |
| Through Coolant | Yes |
| Complete Insert Compatibility | R300-0932.. |
| Manufacturers Catalog Number | 5739759 |
