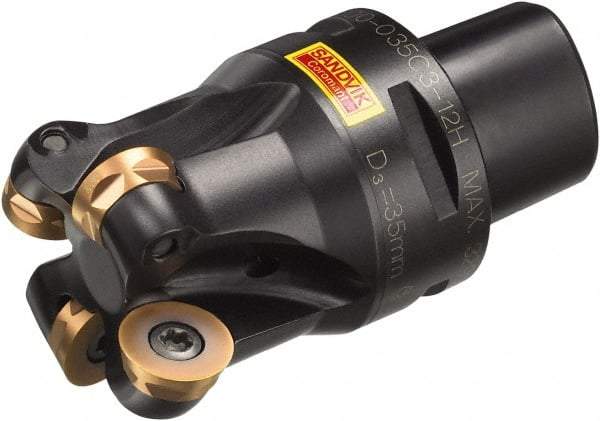

Sandvik Coromant - 4 Inserts, 1.1811" Cutter Diam, 0.2362" Max Depth of Cut, Indexable High-Feed Face Mill - 2.9134" High, R300..Cx Toolholder, R300-1240.. Inserts, Series CoroMill 300
Item #: 54949037
Brand: Sandvik Coromant
Model #: 5744380
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.1811 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Shank Diameter (Decimal Inch) | 40.0000 |
| Overall Height (Decimal Inch) | 2.9134 |
| Series | CoroMill 300 |
| Cutter Style | R300..Cx |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | R300-1240.. |
| Cutting Direction | Right Hand |
| Maximum RPM | 28300 |
| Maximum Body Diameter (Decimal Inch) | 1.3898 |
| Through Coolant | Yes |
| Complete Insert Compatibility | R300-1240.. |
| Manufacturers Catalog Number | 5744380 |
