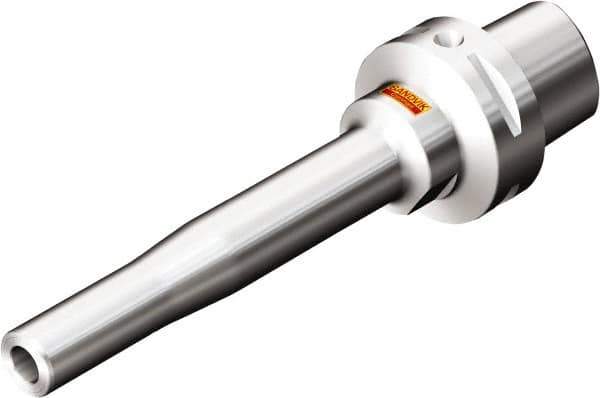

Sandvik Coromant - C6 Modular Connection, 20mm Hole Diam, Hydraulic Tool Holder/Chuck - 32mm Nose Diam, 235mm Projection, Through Coolant
Item #: 54924477
Brand: Sandvik Coromant
Model #: 6255487
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | C6 |
| Hole Diameter (Decimal Inch) | 0.7874 |
| Hole Diameter (mm) | 20.00 |
| Nose Diameter (Decimal Inch) | 1.2598 |
| Nose Diameter (mm) | 32.00 |
| Projection (Decimal Inch) | 9.2520 |
| Projection (mm) | 235.00 |
| Through Coolant | Yes |
| Overall Length (mm) | 273.00 |
| Overall Length (Decimal Inch) | 10.7480 |
