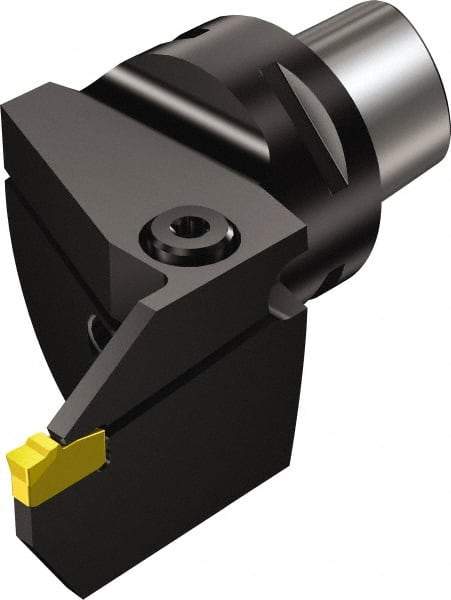

Sandvik Coromant - Cx-R/LF151.23 Insert, 67mm Head Length, Modular Grooving Cutting Unit Head - Left Hand Cut, System Size C4, Through Coolant, Series T-Max Q-Cut
Item #: 54903836
Brand: Sandvik Coromant
Model #: 5728396
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | T-Max Q-Cut |
| Cutting Direction | Left Hand |
| Modular Head Style | Cutting Head |
| Insert Style | Cx-R/LF151.23 |
| Head Length/Projection (mm) | 67.00 |
| Head Length/Projection (Decimal Inch) | 2.6378 |
| Through Coolant | Through Coolant |
| Complete Insert Compatibility | N151.2-400- 5E |
| Maximum Depth of Cut (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
