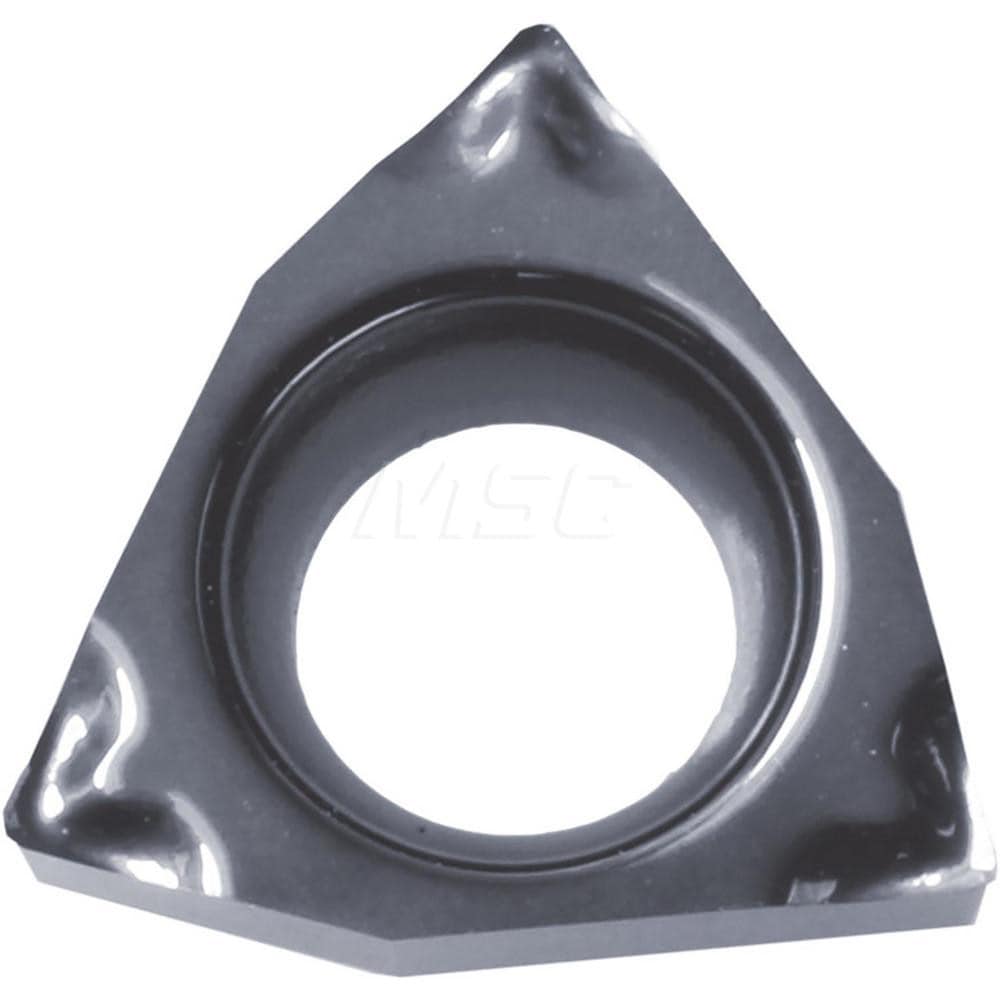

Boring Inserts; Insert Style: WBGT; Insert Size Code: 12105; Insert Material: Carbide; Material Grade: P01, P10; Manufacturer Grade: PR1705; Inscribed Circle (Inch): 5/32
Item #: 18260141
Brand: Kyocera
Model #: TLN40150
Product Specifications
| Insert Style | WBGT |
| Insert Size Code | 12105 |
| Insert Material | Carbide |
| Material Grade | P01; P10 |
| Manufacturer Grade | PR1705 |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (Inch) | 1/128 |
| Relief Angle | 5 |
| Rake | Positive |
| Chipbreaker | CF |
| Series | ISOI |
| Coating Process | PVD |
| Included Angle | 80 |
| Insert Shape | Trigon |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Iso Code | WBGT060102MPL-CF |
| Rake Angle | 20 |
| Manufacturers Catalog Number | TLN40150 |
| Length (Decimal Inch - 4 Decimals) | 0.3940 |
| Width (Decimal Inch - 4 Decimals) | 0.394 |
| Coating/Finish | MEGACOAT NANO PLUS |
| UNSPSC Code | 23242107 |
| Maximum Depth of Cut (Decimal Inch) | 0.1313 |
