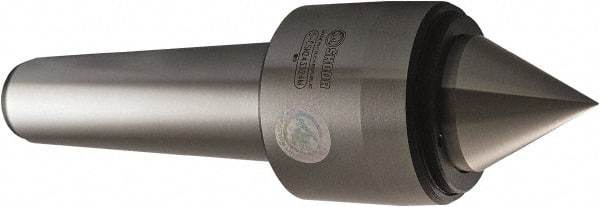

Skoda - MT4 Morse Taper Shank, 55mm Head Diam, Live Center - 4,000 Max RPM, 55mm Point Diam, 37.5mm Point Len, 2,860 Lbs. Max Workpiece, Standard Point
Item #: 54824784
Brand: Skoda
Model #: 310120
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Morse Taper |
| Taper Size | MT4 |
| Shank Diameter (Inch) | 1-1/2 |
| Maximum Workpiece Weight (Lb.) | 2860.00 |
| Point Style | Standard |
| Point Diameter (mm) | 55.00 |
| Point Diameter (Decimal Inch) | 2.1653 |
| Tip Diameter (mm) | 35.00 |
| Tip Diameter (Decimal Inch) | 1.3770 |
| Point Length (mm) | 37.50 |
| Point Length (Decimal Inch) | 1.4763 |
| Accuracy (mm) | 0.0050 |
| Accuracy (Decimal Inch) | 0.000200 |
| Tip Length (Decimal Inch) | 1.4763 |
| Head Diameter (mm) | 55.00 |
| Head Diameter (Decimal Inch) | 2.1653 |
| Head Length (Decimal Inch) | 2.2800 |
| Taper Length (Inch) | 3-7/8 |
| Shank Length (Decimal Inch) | 3.8750 |
| Overall Length (mm) | 194.00 |
| Overall Length (Decimal Inch) | 7.6377 |
| Gage Line Diameter (mm) | 31.26 |
| Gage Line Diameter (Decimal Inch) | 1.2310 |
| Included Angle | 60.00 |
| Maximum RPM | 4000 |
| Material | Hardened Steel |
| Carbide-Tipped | No |
