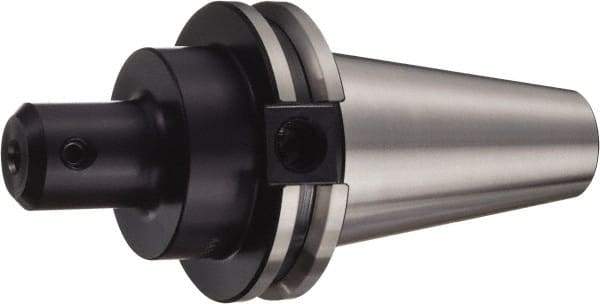

Sandvik Coromant - CAT50 Taper Shank 1" Hole End Mill Holder/Adapter - 2" Nose Diam, 2.62" Projection, Through-Spindle, Through-Bore & DIN Flange Coolant
Item #: 54735097
Brand: Sandvik Coromant
Model #: 5721201
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Hole Diameter (Inch) | 1 |
| Nose Diameter (Inch) | 2 |
| Projection (Decimal Inch) | 2.6200 |
| Through Coolant | Yes |
| Clamping Depth (Inch) | 2-1/2 |
| Clamping Depth (Decimal Inch) | 2.5000 |
| Overall Length (Decimal Inch) | 8.0079 |
| Balanced to (RPM) | 8000 |
| TIR (Decimal Inch) | 0.0020 |
| Coolant Type | Through-Spindle, Through-Bore & DIN Flange |
