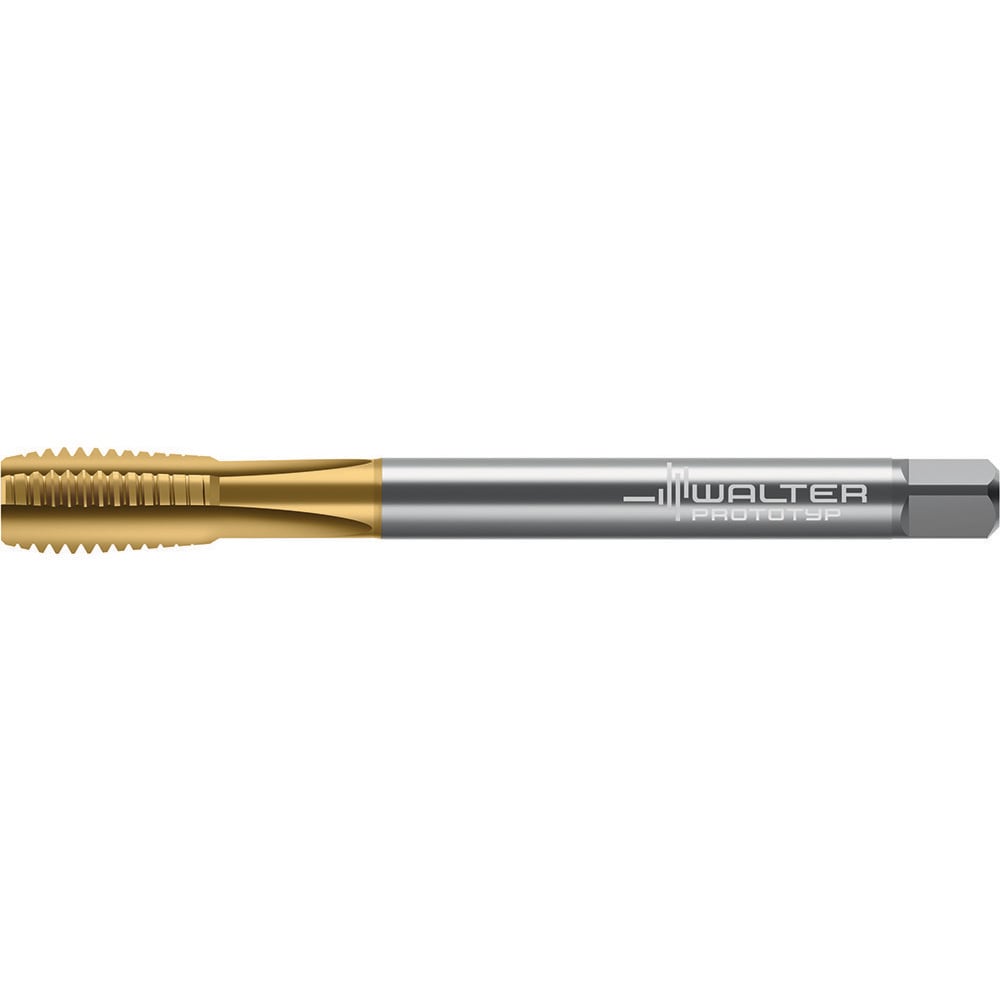

Straight Flute Tap: M27x3 M, 4 Flute, Semi-Bottoming Chamfer, 6HX Class of Fit, HSS-E, TiN Finish
Item #: 53459632
Brand: Walter-Prototyp
Model #: 8237464
Product Specifications
| Tap Type | Straight Flute |
| Thread Size (mm) | M27x3 |
| Thread Standard | M |
| Chamfer | Semi-Bottoming |
| Material | High-Speed Steel-E |
| Coating/Finish | TiN |
| Thread Direction | Right Hand |
| Coolant Through | Yes |
| Class Of Fit | 6HX |
| Thread Limit | H9 |
| Number Of Flutes | 4 |
| Oversize | No |
| Overall Length (Decimal Inch) | 6.2992 |
| Overall Length (mm) | 160.0000 |
| Thread Pitch (mm) | 3.00 |
| Thread Length (Inch) | 1.4173 |
| Thread Length (mm) | 36.00 |
| Application | Threading |
| Shank Diameter (mm) | 20.0000 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Tapping Depth (mm) | 36.00 |
| Tapping Depth (Decimal Inch) | 1.4173 |
| Square Length (mm) | 19.00 |
| Square Length (Decimal Inch) | 0.7480 |
| Square Size (mm) | 16.00 |
| Square Size (Decimal Inch) | 0.6299 |
| Series | TC130 |
| UNSPSC Code | 23241600 |
