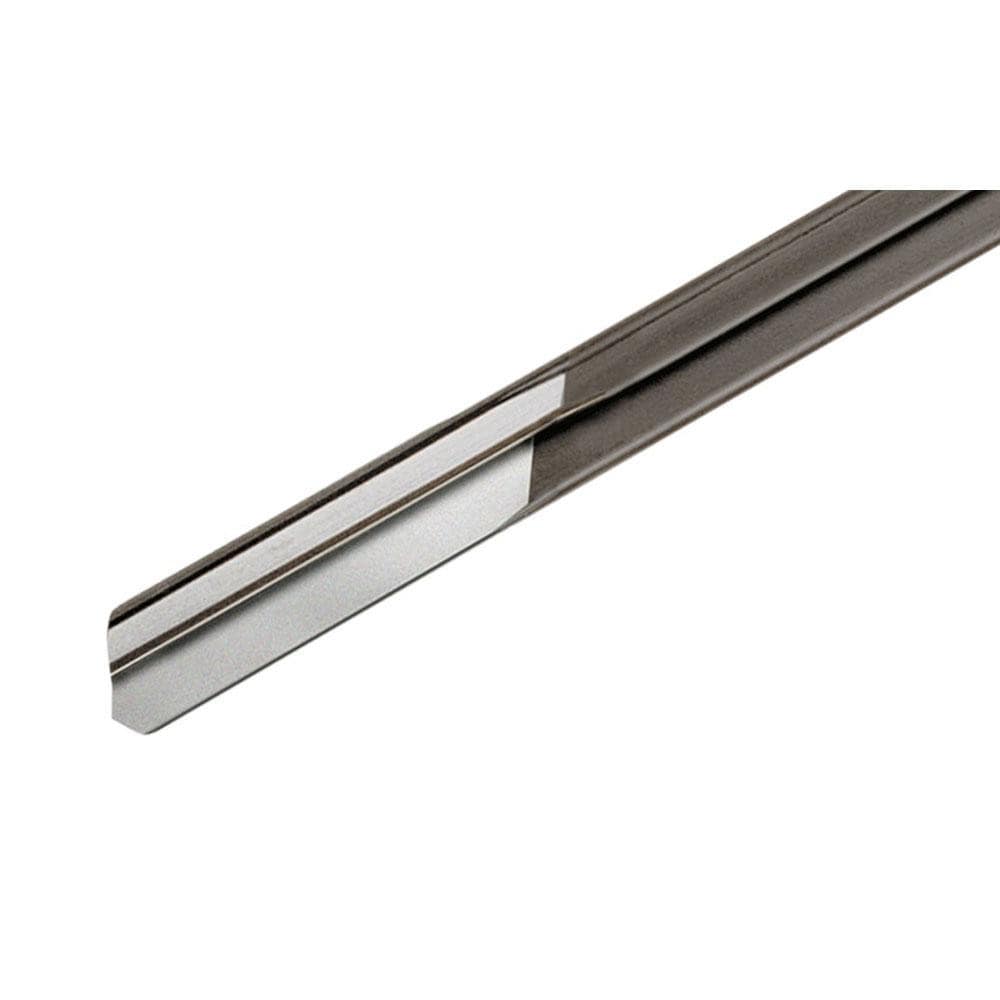

Gun Drill Bits; Drill/Shank Material: Solid Carbide; Coolant Hole Configuration: Round; Shank Type: Standard
Item #: 41841131
Brand: Tungaloy
Model #: 6990909
Product Specifications
| Drill/Shank Material | Solid Carbide |
| Coolant Hole Configuration | Round |
| Shank Type | Standard |
| Cutting Direction | Right Hand |
| Drill Diameter Tolerance (Decimal) | +0.0005 to -0.0005 |
| Series/List | SLJ |
| Depth Of Cut | 46.1020 |
| Drill Size | 0.2362 in |
| Number Of Flutes | 1 |
| Overall Length (Decimal Inch) | 49.2130 |
| Drill Size (mm) | 6.000 |
| Flute Length (mm) | 1172.59 |
| Overall Length (mm) | 1250.0000 |
| Shank Diameter (mm) | 5.8000 |
| Finish Coating | Uncoated |
| Flute Length (Decimal Inch) | 46.1650 |
| Drill Type | Single Flute Gun Drill |
| Depth of Cut (mm) | 1171.00 |
| Shank Length (mm) | 70.000 |
| Shank Length (Decimal Inch) | 2.7560 |
| UNSPSC Code | 20121600 |
