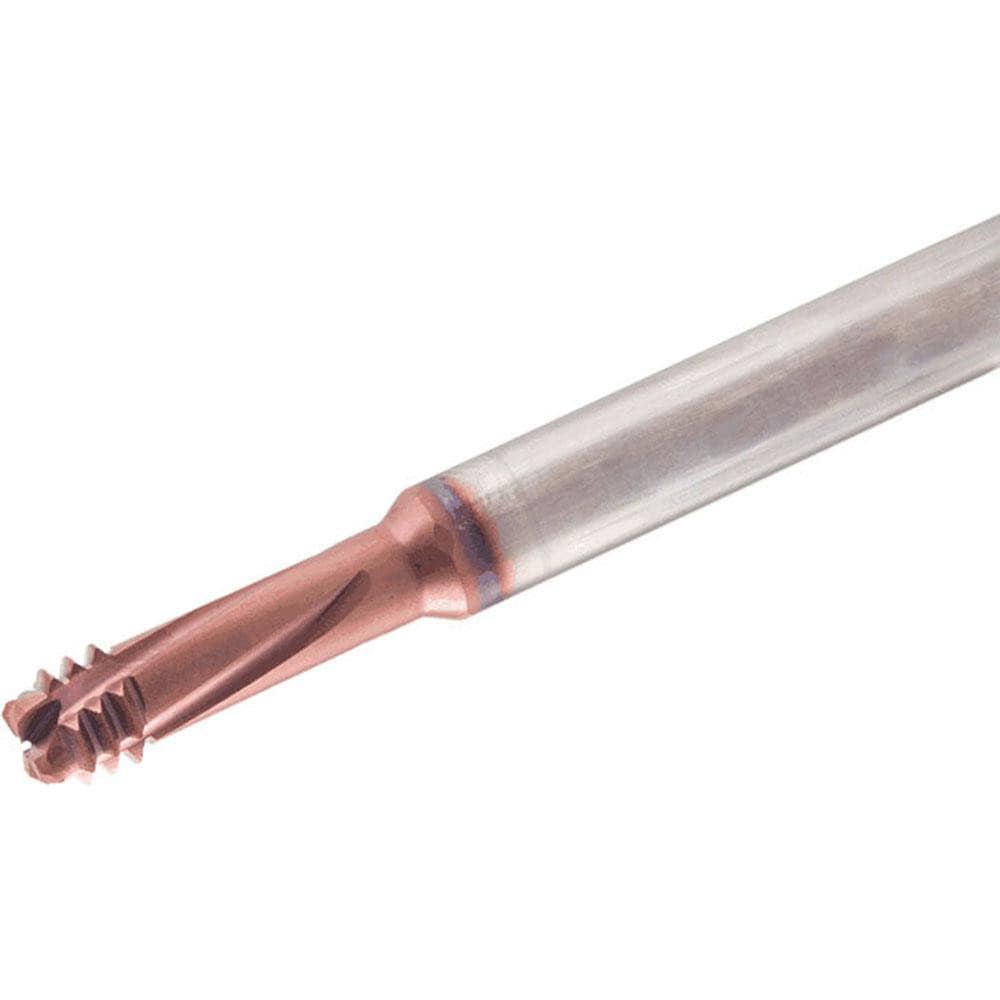

Helical Flute Thread Mill: M9x1, Internal, 3 Flute, 8.00 mm Shank Dia, Solid Carbide
Item #: 60936507
Brand: Tungaloy
Model #: 5667197
Product Specifications
| Material | Solid Carbide |
| Thread Size (mm) | M9x1 |
| Thread Type | Internal |
| Shank Diameter (mm) | 8.00 |
| Cutting Diameter (mm) | 4.70 |
| Shank Type | Straight-Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.1850 |
| Length of Cut (mm) | 14.00 |
| Overall Length (mm) | 64.00 |
| Flute Direction | Left Hand |
| Material Grade | AH725 |
| Series | MTECD |
| Number Of Flutes | 3 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Thread Length (mm) | 2.40 |
| Thread Depth (mm) | 14.00 |
| UNSPSC Code | 23242117 |
| Material | Solid Carbide |
| Thread Size (mm) | M9x1 |
| Thread Type | Internal |
| Shank Diameter (mm) | 8.00 |
| Cutting Diameter (mm) | 4.70 |
| Shank Type | Straight-Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.1850 |
| Length of Cut (mm) | 14.00 |
| Overall Length (mm) | 64.00 |
| Flute Direction | Left Hand |
| Material Grade | AH725 |
| Series | MTECD |
| Number Of Flutes | 3 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Thread Length (mm) | 2.40 |
| Thread Depth (mm) | 14.00 |
| UNSPSC Code | 23242117 |
| MSC Part # | 60936507 |
| Mfr Part # | 5667197 |
| Country of Origin Country of Origin is subject to change | Israel |
