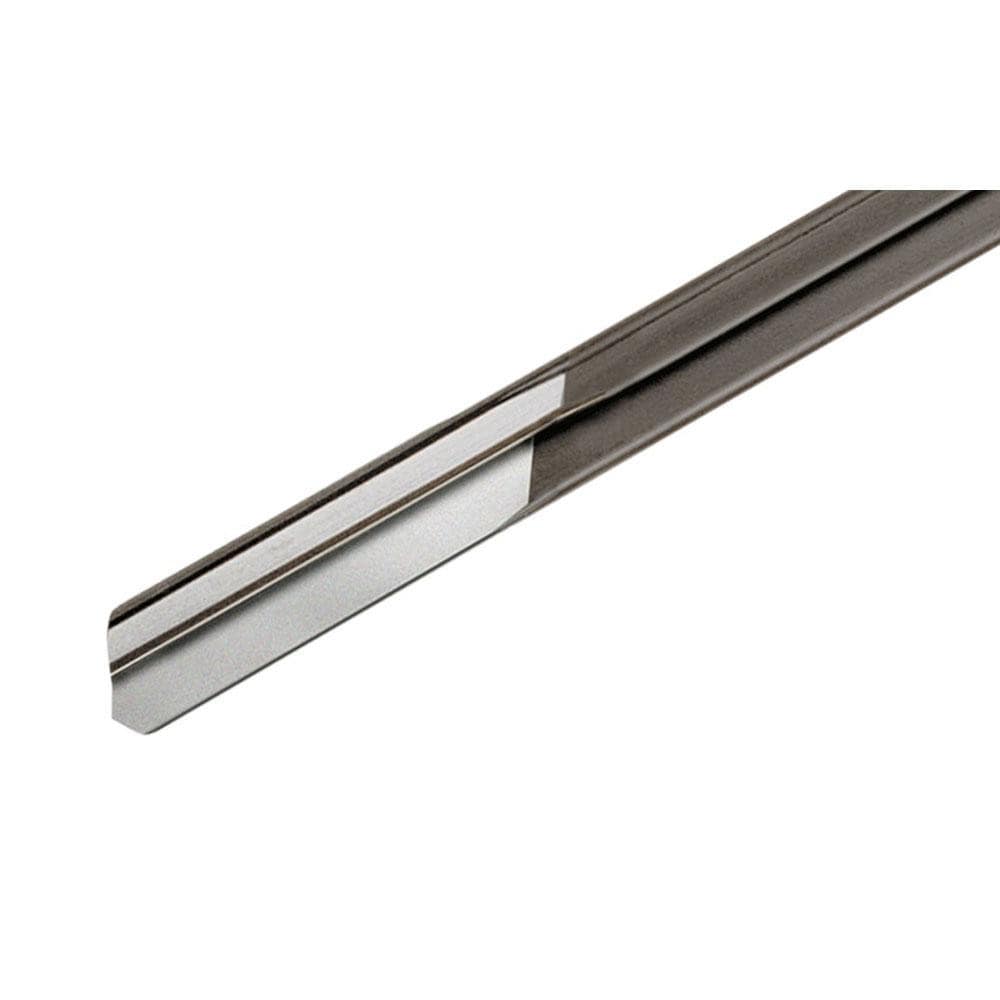

Gun Drill Bits; Drill/Shank Material: Solid Carbide; Coolant Hole Configuration: Round; Shank Type: Standard
Item #: 41839457
Brand: Tungaloy
Model #: 6990902
Product Specifications
| Drill/Shank Material | Solid Carbide |
| Coolant Hole Configuration | Round |
| Shank Type | Standard |
| Cutting Direction | Right Hand |
| Drill Diameter Tolerance (Decimal) | +0.0005 to -0.0005 |
| Series/List | SLJ |
| Depth Of Cut | 12.7950 |
| Drill Size | 0.1181 in |
| Number Of Flutes | 1 |
| Overall Length (Decimal Inch) | 15.7480 |
| Drill Size (mm) | 3.000 |
| Flute Length (mm) | 324.99 |
| Overall Length (mm) | 400.0000 |
| Shank Diameter (mm) | 2.9000 |
| Finish Coating | Uncoated |
| Flute Length (Decimal Inch) | 12.7950 |
| Drill Type | Single Flute Gun Drill |
| Depth of Cut (mm) | 325.00 |
| Shank Length (mm) | 70.000 |
| Shank Length (Decimal Inch) | 2.7560 |
| UNSPSC Code | 20121600 |
