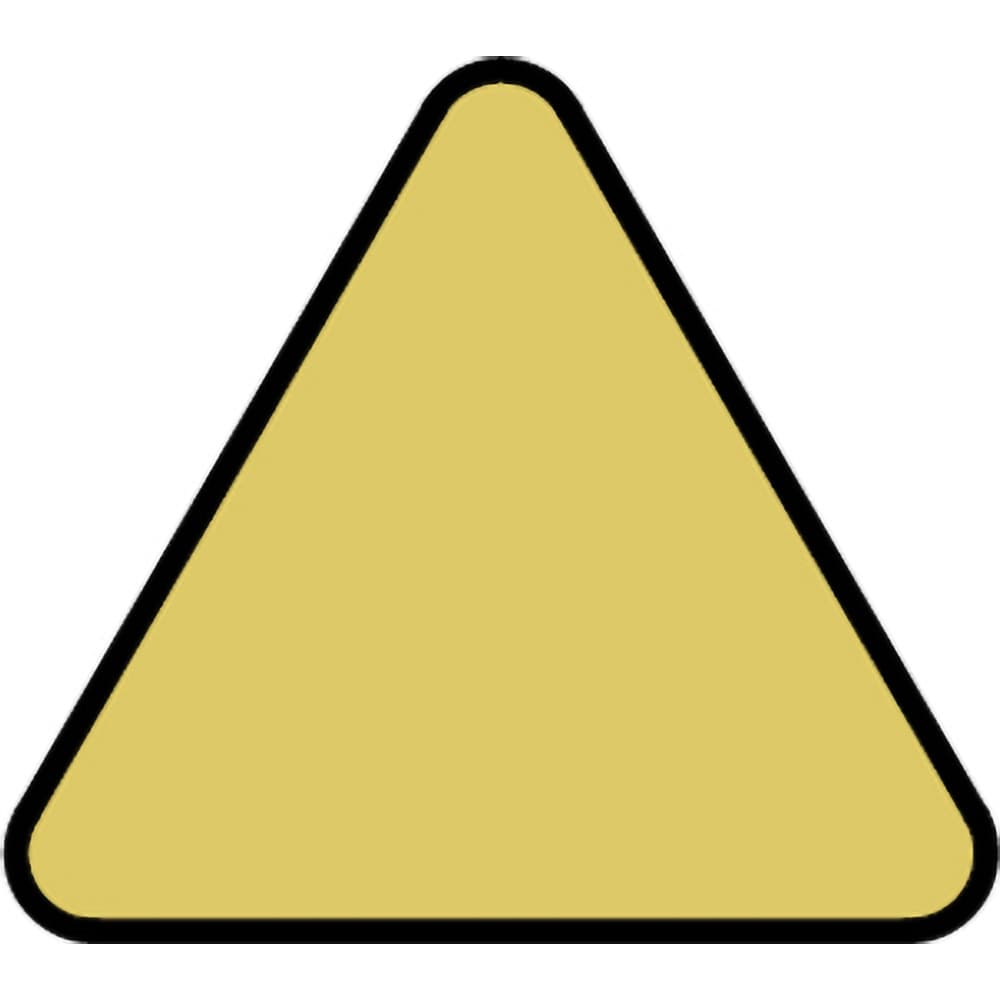

Turning Insert: 3/8X.548X1/8 .015R, Carbide
Item #: 15300320
Brand: Micro 100
Model #: TPG-321
Product Specifications
| ANSI Insert Code | TPG321 |
| ISO Insert Code | TPG160304 |
| Relief Angle | 11 |
| Insert Style | TPG |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | TPG |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Maximum Depth of Cut (Decimal Inch) | 0.1825 |
| Insert Holding Method | Clamp |
| Clearance Code | P |
| Tolerance Code | G |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5479 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | TPG-321 |
| Chip Breaker | Flat Top |
| Cutting Edge Style | Honed |
| Width (Decimal Inch - 4 Decimals) | 0.5479 |
| Multi-Use Tool | No |
| Full Radius | No |
| Multi-Use Application | Boring |
| ANSI Size Code | 321 |
| ISO Size Code | 160304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 321 |
