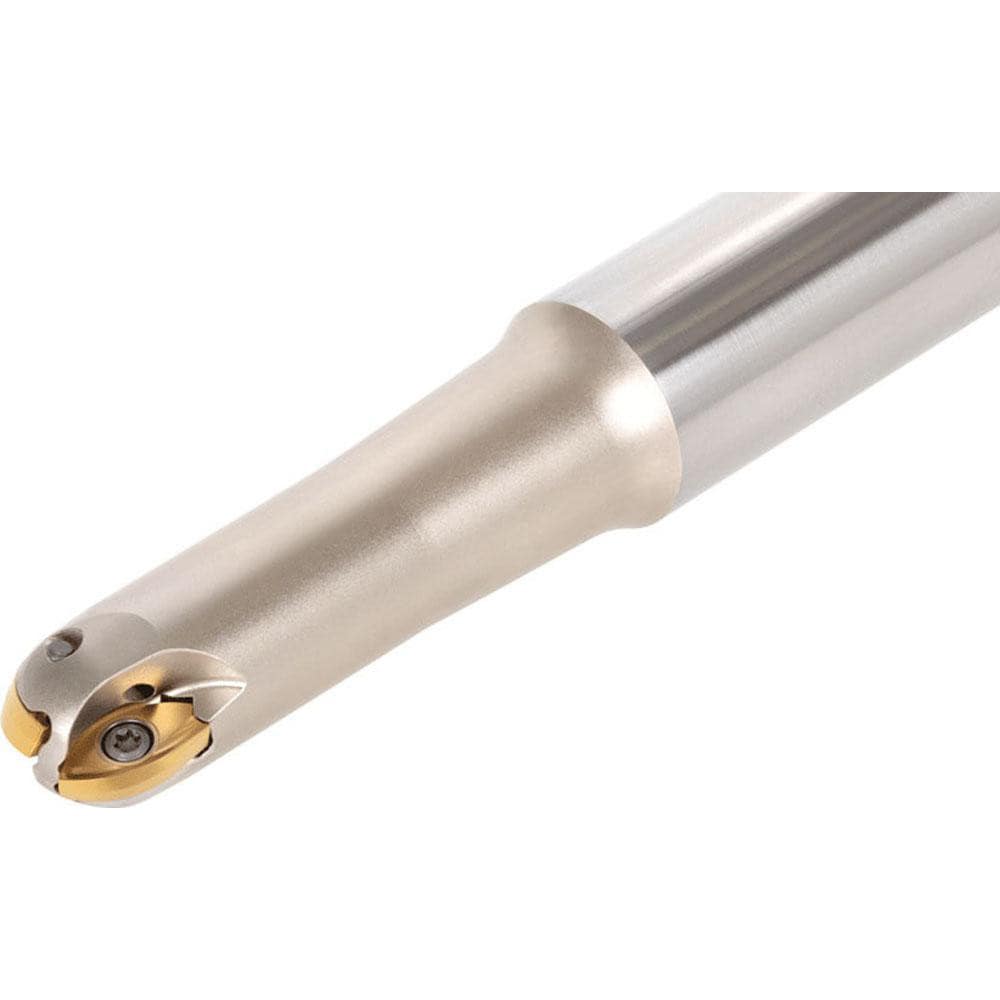

Indexable Ball Nose End Mills; Cutting Diameter (Decimal Inch): 0.6299; Cutting Diameter (mm): 16.00; Tool Material: Steel; Maximum Depth of Cut (mm): 11.80; Shank Type: Cylindrical
Item #: 63717748
Brand: Tungaloy
Model #: 3113048
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Cutting Diameter (mm) | 16.00 |
| Tool Material | Steel |
| Maximum Depth of Cut (mm) | 11.80 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.0000 |
| Insert Holding Method | Screw |
| Compatible Insert Style | ZRBM |
| Compatible Insert Size Code | 160 |
| Toolholder Style | EBRM |
| Tapered Neck | Yes |
| Overall Length (mm) | 200.0000 |
| Series | EBRM |
| Head Length (mm) | 60.00 |
| Tool Application | Profile Milling |
| Manufacturers Catalog Number | EBRM16T20S200 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Number of Ball Nose Inserts | 2 |
| Number Of Inserts | 2 |
| Complete Insert Compatibility | ZRBM |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Cutting Diameter (mm) | 16.00 |
| Tool Material | Steel |
| Maximum Depth of Cut (mm) | 11.80 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.0000 |
| Insert Holding Method | Screw |
| Compatible Insert Style | ZRBM |
| Compatible Insert Size Code | 160 |
| Toolholder Style | EBRM |
| Tapered Neck | Yes |
| Overall Length (mm) | 200.0000 |
| Series | EBRM |
| Head Length (mm) | 60.00 |
| Tool Application | Profile Milling |
| Manufacturers Catalog Number | EBRM16T20S200 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Number of Ball Nose Inserts | 2 |
| Number Of Inserts | 2 |
| Complete Insert Compatibility | ZRBM |
| UNSPSC Code | 27112803 |
| MSC Part # | 63717748 |
| Mfr Part # | 3113048 |
| Country of Origin Country of Origin is subject to change | South Korea |
