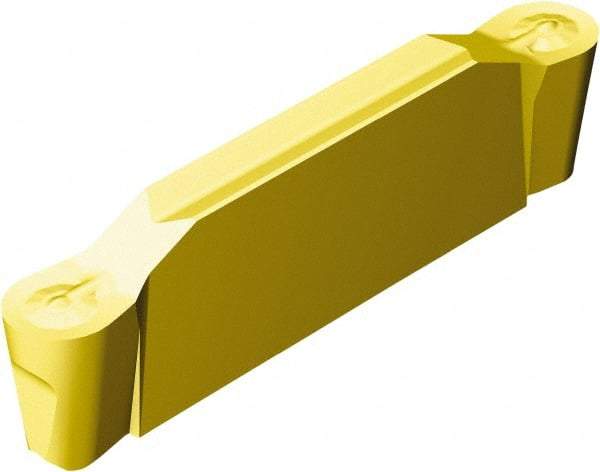

Sandvik Coromant - 0500N123 Grade S05F, 5mm Cutting Width Carbide Grooving Insert - 22.8mm Max Depth of Cut, Neutral, 2.5mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 54494331
Brand: Sandvik Coromant
Model #: 5736523
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | 0500 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 22.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.8976 |
| Manufacturer's Grade | S05F |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Corner Radius (mm) | 2.50 |
| Corner Radius (Decimal Inch) | 0.0984 |
| Coating Process | CVD |
| Series | CoroCut 1-2 |
| Manufacturers Catalog Number | 5736523 |
