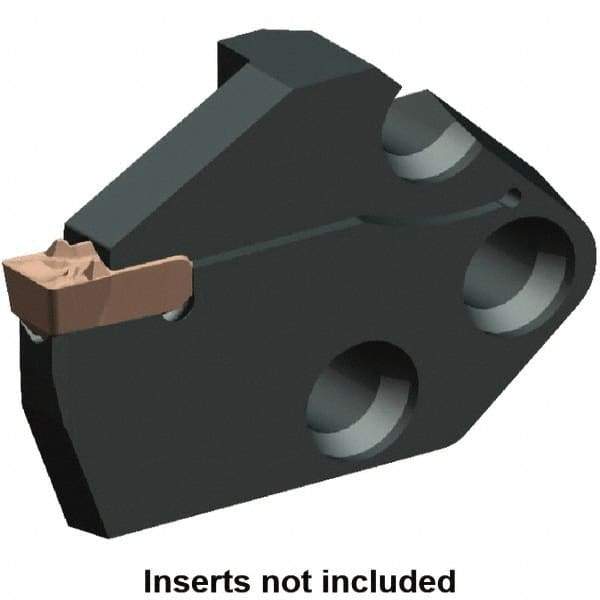

Kennametal - 6" Groove Width, 32mm Max Depth of Cut, Right Hand Cut, EVM Indexable Grooving Blade - 6 to 7.99mm Insert Width, 6 Seat Size, A2, A3, A4 Insert Style, Series Beyond Evolution
Item #: 54414958
Brand: Kennametal
Model #: 6031037
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 6.00 |
| Minimum Groove Width (Decimal Inch) | 0.2360 |
| Maximum Insert Width (mm) | 7.99 |
| Maximum Insert Width (Decimal Inch) | 0.3146 |
| Minimum Insert Width (mm) | 6.00 |
| Minimum Insert Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 32.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Blade Style | EVM |
| Series | Beyond Evolution |
| Blade Width (mm) | 5.25 |
| Blade Width (Decimal Inch) | 0.2070 |
| Maximum Groove Width (mm) | 6.00 |
| Maximum Groove Width (Decimal Inch) | 0.2360 |
| Overall Length (mm) | 65.62 |
| Overall Length (Decimal Inch) | 2.5830 |
| Cutting Height (mm) | 28.76 |
| Cutting Height (Decimal Inch) | 1.1320 |
| Insert Style | A2; A3; A4 |
| Insert Seat Size | 6 |
| Cartridge Size | 65 |
| Complete Insert Compatibility | EG0600M06P04 |
