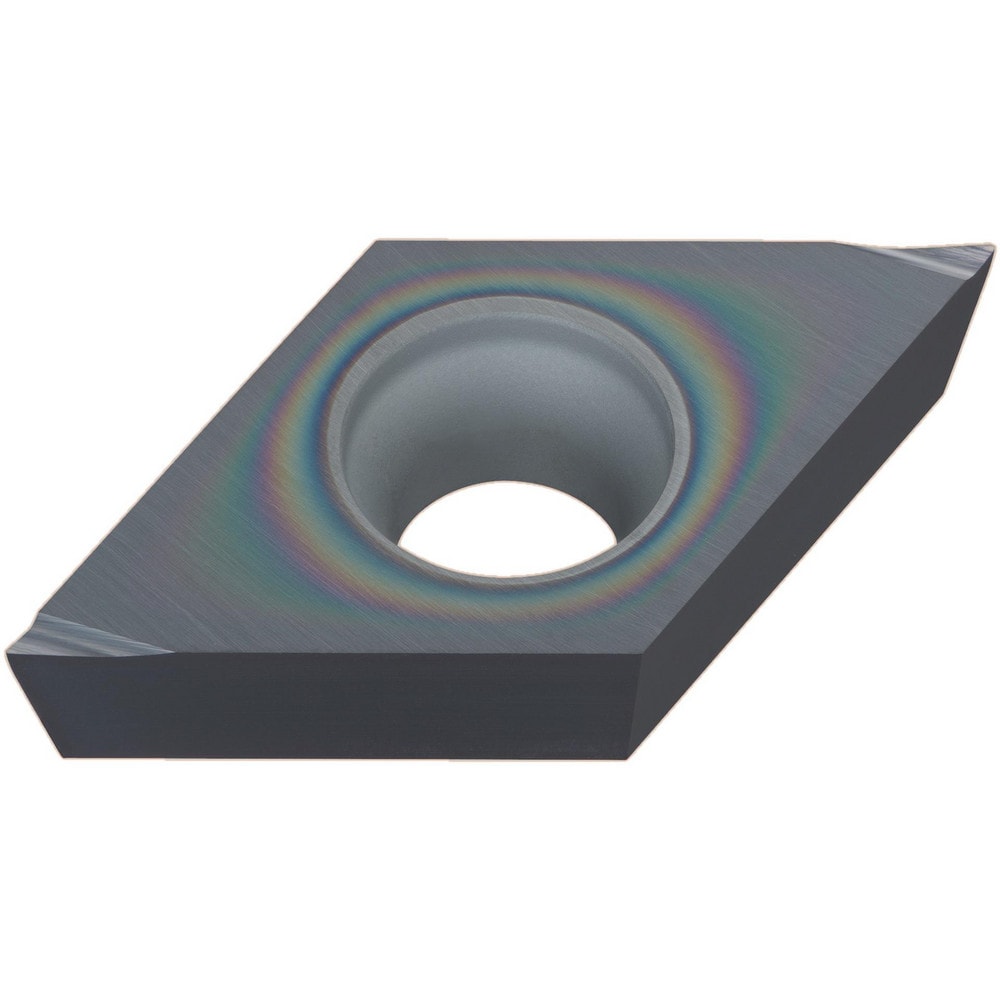

Turning Insert: DCGT32505MRSRF MS9025, Carbide
Item #: 00686121
Brand: Mitsubishi
Model #: 10612385
Product Specifications
| ANSI Insert Code | DCGT32.50.5 |
| ISO Insert Code | DCGT |
| Relief Angle | 7 |
| Insert Style | DCGT |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 55 |
| Manufacturer Grade | MS9025 |
| Coating/Finish | PVD |
| Insert Hand | Right Hand |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1562 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Light Machining; Finishing |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Clearance Code | C |
| Tolerance Code | G |
| Primary Workpiece Material Code | S; M |
| Chip Breaker | SRF |
| ANSI Size Code | 32.50.5 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3 |
