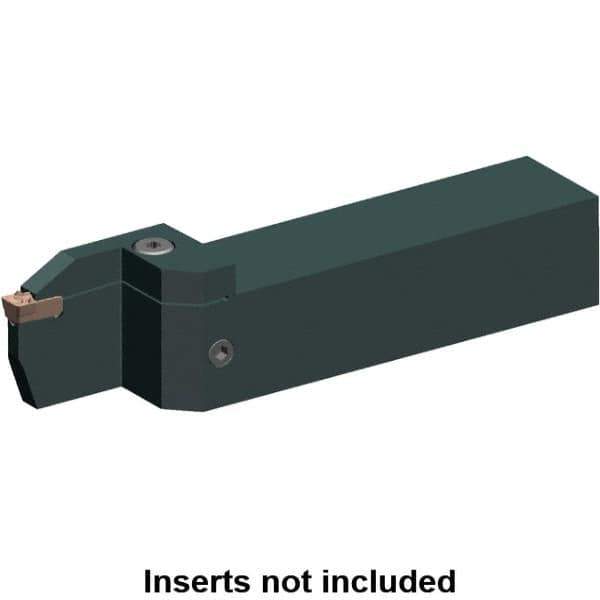

Kennametal - Right Hand Cut, 52mm Max Workpc Diam, EG0200M02P02 Insert, Indexable Cutoff Toolholder - 26mm Max Depth of Cut, 1" Shank Width, 1" Shank Height, 6" OAL
Item #: 54319066
Brand: Kennametal
Model #: 5956449
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 26.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.0240 |
| Maximum Workpiece Diameter (mm) | 52.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.0480 |
| Series | Beyond Evolution |
| Toolholder Style | EVSM |
| Insert Compatibility | EG0200M02P02 |
| Overall Length (mm) | 152.40 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Insert Seat Size | 2 |
| Insert Holding Method | Clamp |
| Through Coolant | No |
| Insert Width (mm) | 1.55 |
| Insert Width (Decimal Inch) | 0.0610 |
| Head Height (mm) | 34.40 |
| Head Height (Decimal Inch) | 1.3540 |
| Head Length (mm) | 42.00 |
| Head Length (Decimal Inch) | 1.6540 |
| Shank Length (mm) | 110.40 |
| Shank Length (Decimal Inch) | 4.3460 |
| Blade Width (mm) | 1.55 |
| Blade Width (Decimal Inch) | 0.0610 |
| Complete Insert Compatibility | EG0200M02P02 |
