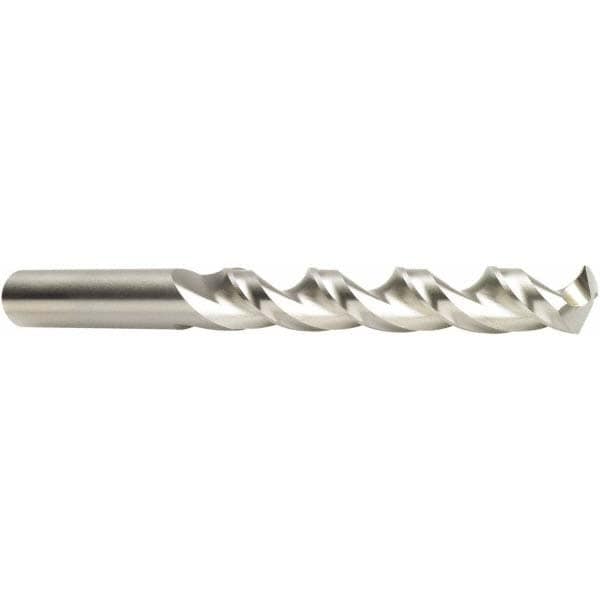

Jobber Drill: 1/8" Dia, 130 deg Point, Cobalt
Item #: 78972411
Brand: Dormer Pramet
Model #: 5970659
Product Specifications
| Drill Bit Size (Inch) | 1/8 |
| Drill Bit Size (Decimal Inch) | 0.1250 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Proprietary |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel |
| Coolant Through | No |
| Primary Workpiece Material Code | P; S; H; M; N |
| Shank Diameter (Decimal Inch) | 0.4063 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Flute Length (mm) | 41.00 |
| Flute Length (Decimal Inch) | 1.6142 |
| Series | A900 |
| Flute By Diameter Ratio | 6xD |
| Shank Length (mm) | 29 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | High Performance |
| Standards | DIN; ANSI |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| Specification Designation | DIN; ANSI |
| UNSPSC Code | 23241634 |
