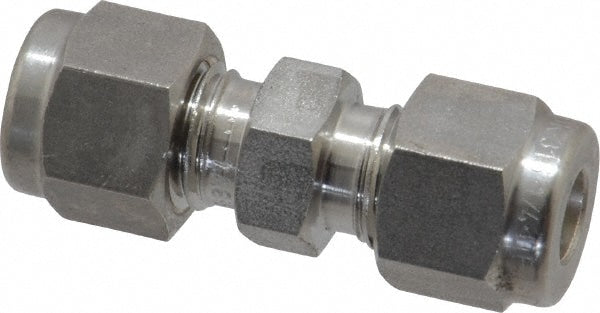

Compression Tube Union: 7/16-20, 1/4" Tube OD, Compression x Compression
Item #: 98264823
Brand: Value Collection
Model #: SS-TU-FT4
Product Specifications
| Fitting Type | Union |
| Material | Stainless Steel |
| End Connections | Compression x Compression |
| Thread Size (Inch) | 7/16-20 |
| Thread Standard | UNF |
| Tube Outside Diameter | 1/4 |
| Overall Length (Decimal Inch) | 1.6098 |
| Overall Length (mm) | 40.89 |
| Standards | ASTM A276; ASTM A479; ASTM A269; ASTM A213; ASTM A182; DIN EN10122-5; DIN EN10272 |
| Material Grade | 316 |
| Swagelok Part Number | SS-400-6 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | China |
