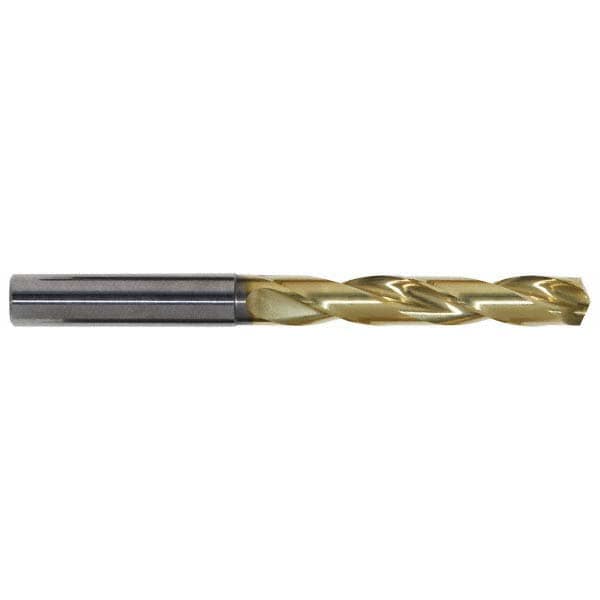

Jobber Drill: 0.2480" Dia, 140 deg Point, Solid Carbide
Item #: 62047964
Brand: Guhring
Model #: 9016620063000
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2480 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Specification Number | DIN 6537L |
| Coolant Through | Yes |
| Overall Length (mm) | 91.00 |
| Overall Length (Decimal Inch) | 3.5827 |
| Spiral Type | Regular |
| Flute Length (mm) | 53.00 |
| Flute Length (Decimal Inch) | 2.0866 |
| Shank Diameter (mm) | 8 |
| Drill Bit Diameter Tolerance | 0.006 to 0.021 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Material Grade | Submicron |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (Decimal Inch) | 0.2480 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Specification Number | DIN 6537L |
| Coolant Through | Yes |
| Overall Length (mm) | 91.00 |
| Overall Length (Decimal Inch) | 3.5827 |
| Spiral Type | Regular |
| Flute Length (mm) | 53.00 |
| Flute Length (Decimal Inch) | 2.0866 |
| Shank Diameter (mm) | 8 |
| Drill Bit Diameter Tolerance | 0.006 to 0.021 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Material Grade | Submicron |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 62047964 |
| Mfr Part # | 9016620063000 |
| Country of Origin Country of Origin is subject to change | Germany |
