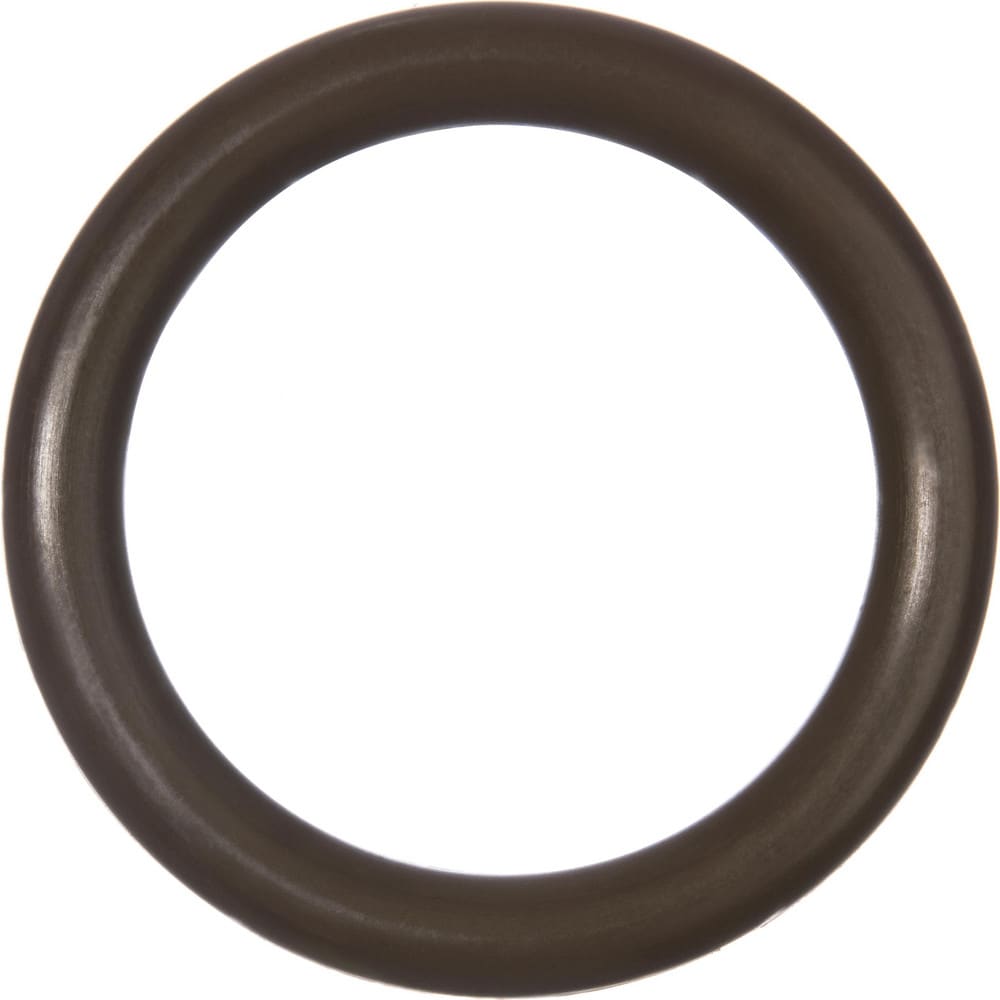

O-Ring: 1.0050" OD, 0.7990" ID, 0.103" Thick, Dash 117, Fluoroelastomer
Item #: 90678822
Brand: USA Industrials
Model #: ZUSAVB75117
Product Specifications
| Material | Fluoroelastomer |
| Dash Number | 117 |
| Inside Diameter (Decimal Inch) | 0.7990 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 1.0050 in |
| Outside Diameter (mm) | 25.53 |
| Thickness (Inch) | 3/32 |
| Thickness (mm) | 2.62 |
| Hardness | 75 |
| Cross Section Shape | Round |
| Minimum Working Temperature (Deg F) | -15 |
| Maximum Working Temperature (F) | 400 |
| Hardness Rating | Hard |
| Compatible Material | Petroleum Products |
| Features | Good Resistance To Petroleum Products. Low Compression Set, And High Temperature Resistance. Wide Spectrum of Chemical Compatibility. Good For Vacuum Service & Low Gas Permeability |
| Color | Brown |
| FDA Approved | No |
| Thickness (Decimal Inch - 4 Decimals) | 0.103 |
| Number Of Pieces | 50 |
| UNSPSC Code | 31401503 |
| Country of Origin | China |
