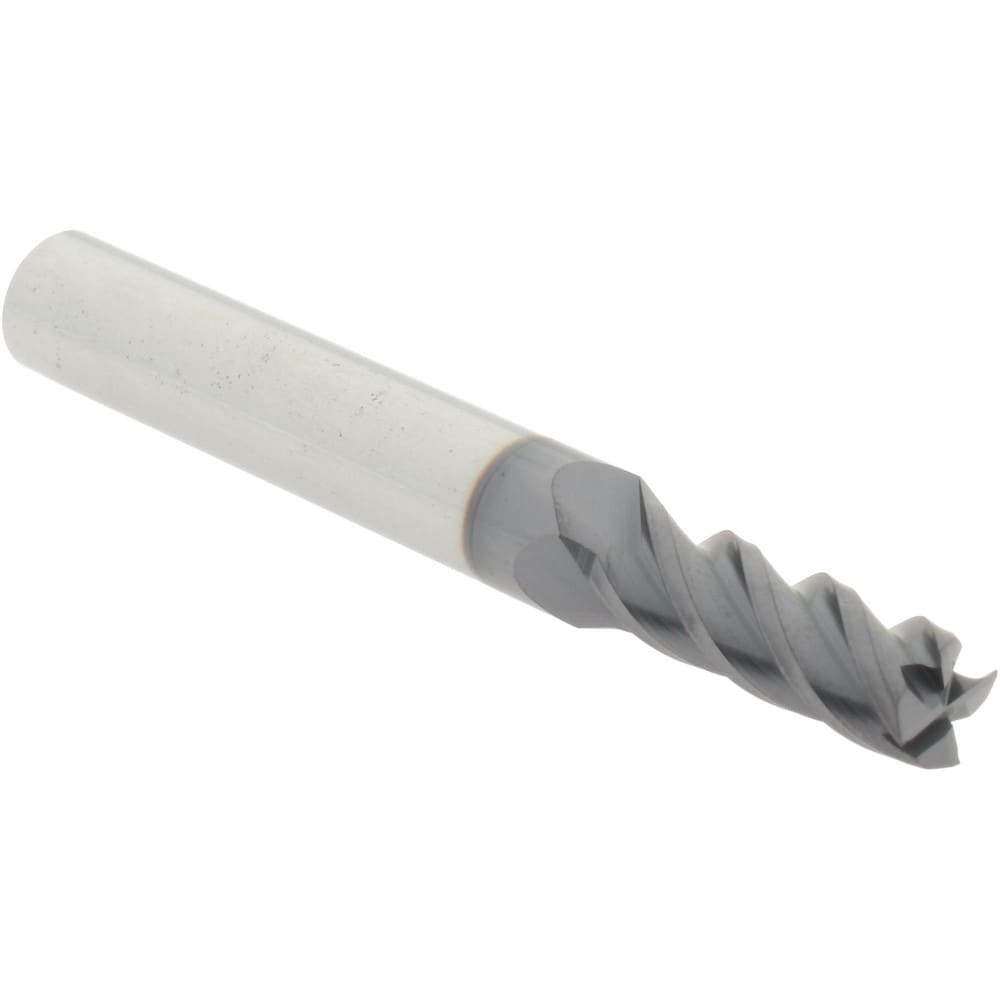

Square End Mill: 17/64" Dia, 3/4" LOC, 4 Flute, Solid Carbide
Item #: 29768934
Brand: Accupro
Model #: 14788478
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2660 |
| Mill Diameter (Inch) | 17/64 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.7500 |
| Length of Cut (Inch) | 3/4 |
| Shank Diameter (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.3130 |
| Overall Length (Inch) | 2-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN+ |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 40 |
| Coating/Finish | AlTiN+ |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Series | ASQSC4-ATP-CC-40H |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
