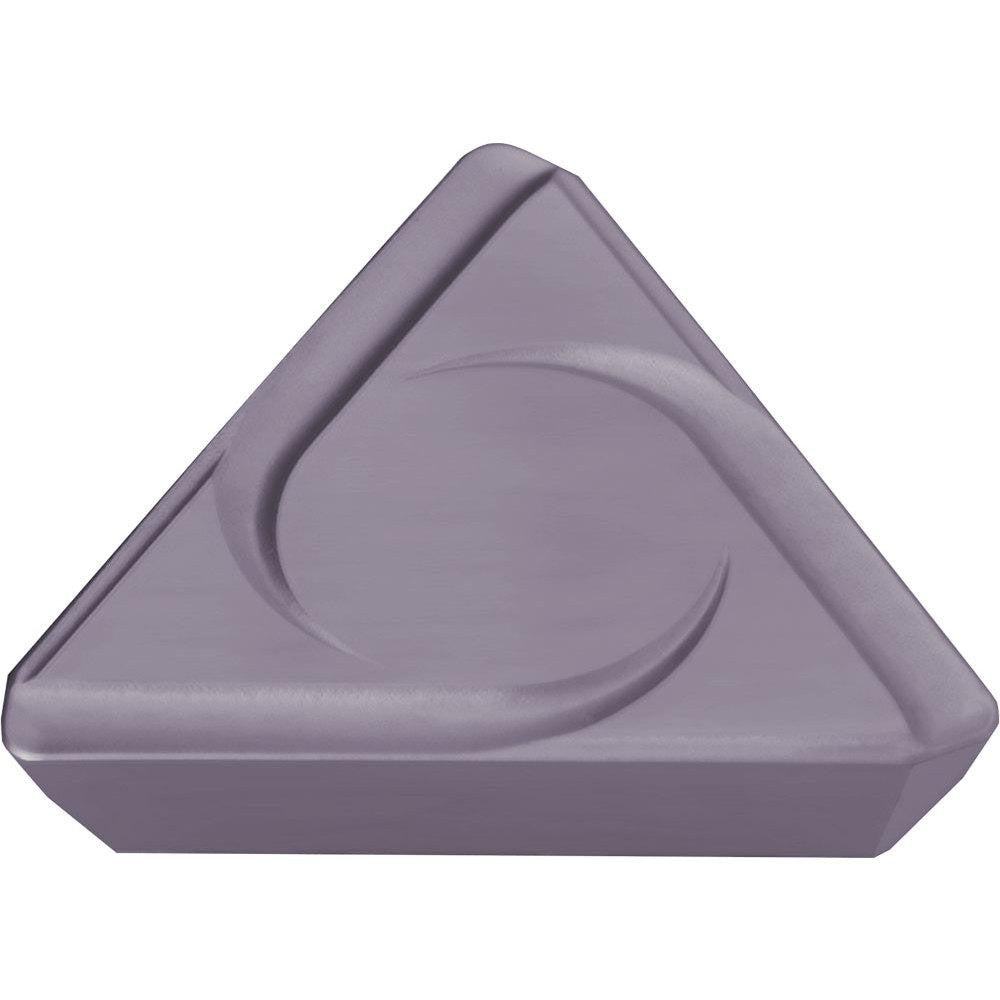

Milling Insert: TEMR1603PTER-H PR1825, Carbide
Item #: 86511284
Brand: Kyocera
Model #: TLT00184
Product Specifications
| Insert Style | TEMR |
| Insert Size | 32 |
| Insert Material | Carbide |
| Insert Shape | Triangle |
| Manufacturer Grade | PR1825 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
| Thickness (mm) | 3.1800 |
| Coating/Finish | MEGACOAT NANO EX |
| Relief Angle | 20.000 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.53 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | MTES Milling |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Mold Steel; Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Austenitic Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | TEMR32PTERHPR1825 |
| Iso Code | TEMR1603PTER-H |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | TEMR32PTERHPR1825 |
| Chip Breaker | PTER-H |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Clamp |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 60 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
