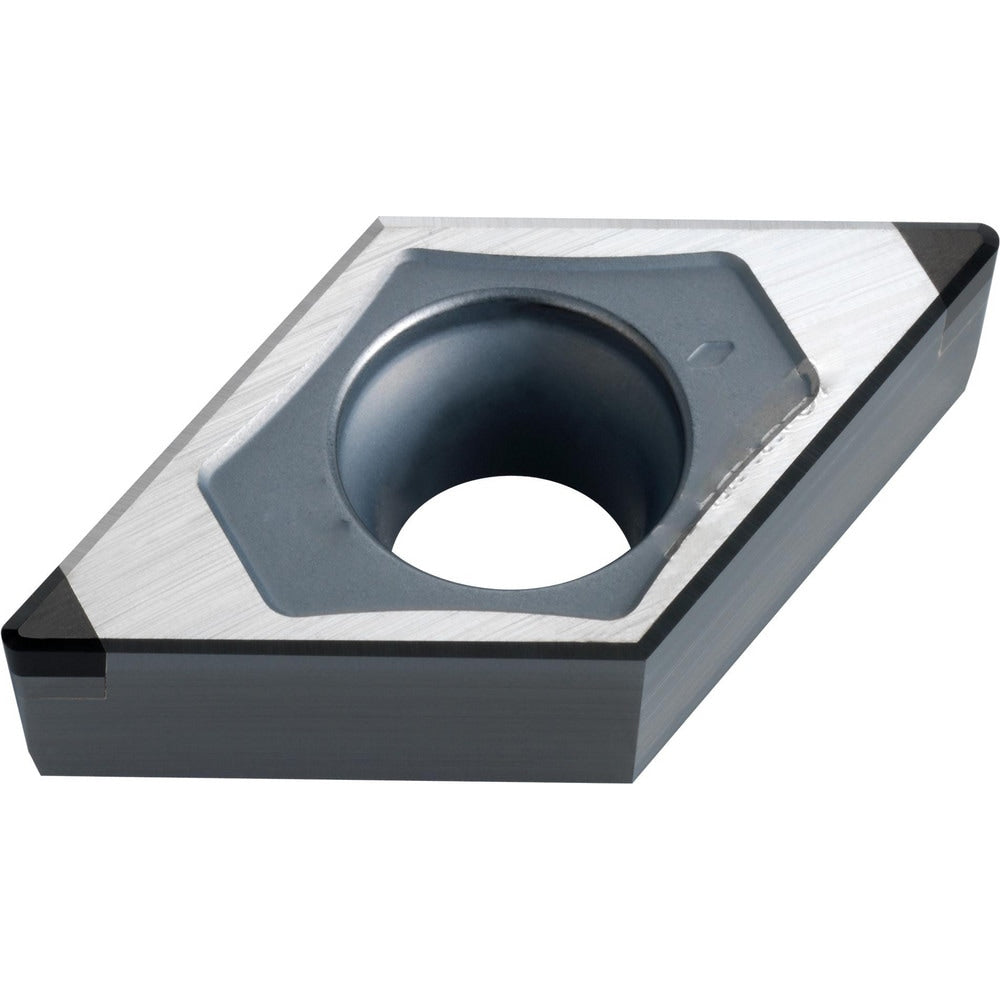

Turning Insert: NP-DCGW32.50.5-SF2, Cubic Boron Nitride (CBN)
Item #: 84458066
Brand: Mitsubishi
Model #: 10594261
Product Specifications
| ANSI Insert Code | DCGW |
| ISO Insert Code | DCGW |
| Relief Angle | 7.000 |
| Insert Style | DCGW |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 55.00 |
| Manufacturer Grade | MB4120 |
| Coating/Finish | Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1562 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.52 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Insert Shape | Rhombic 55° |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | CBN |
| Rake | Positive |
| Primary Workpiece Material | Sintered Iron; Hardened Steel |
| Primary Workpiece Material Code | H; K |
| Single or Multi Tipped | Multi Tipped |
| Coating Classification | Uncoated |
| Chip Breaker | Pressed |
| Rake Angle | 7 |
| Cutting Edge Style | Sharp |
| Full Radius | No |
| Tip Length (Decimal Inch) | 0.0906 |
| Tip Length (mm) | 2.30 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3 |
| Country of Origin | Japan |
