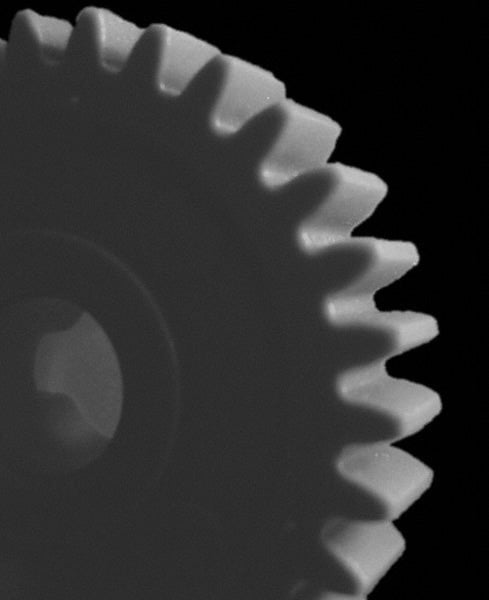

Spur Gear: 53 Teeth, 5/16" Bore Dia
Item #: 03302684
Brand: Made in USA
Model #: 3253
Product Specifications
| Gear Type | Spur |
| Pitch Diameter (Decimal Inch) | 1.6560 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 1.7190 |
| Face Width (Decimal Inch) | 0.1880 |
| Face Width (Inch) | 3/16 |
| Hub Diameter (Decimal Inch) | 0.6700 |
| Hub Diameter (Inch) | 43/64 |
| Pressure Angle | 20.0 |
| Material | POM |
| Diametral Pitch | 32 |
| Bore Diameter (Decimal Inch) | 0.3125 |
| Bore Diameter (Inch) | 5/16 |
| Number Of Teeth | 53 |
| UNSPSC Code | 31171700 |
| Product Service Code | 3020 |
