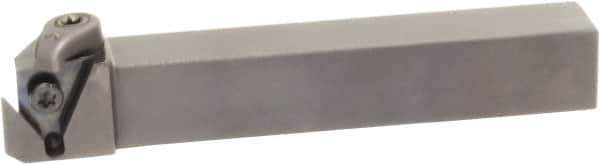

Sumitomo - External Thread, 0.1969" Max Depth of Cut, 0.1" Min Groove Width, 6" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, TGA Insert Style, GWC Toolholder Style, Series SumiTurn
Item #: 53951794
Brand: Sumitomo
Model #: 2600W0Y
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Minimum Groove Width (Decimal Inch) | 0.1000 |
| Maximum Groove Width (Decimal Inch) | 0.1890 |
| Overall Length (Decimal Inch) | 6.0000 |
| Series | SumiTurn |
| Toolholder Style | GWC |
| Insert Compatibility | TGA |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Head Height (Decimal Inch) | 1.0000 |
| Head Length (Decimal Inch) | 1.1800 |
| Complete Insert Compatibility | TGA |
